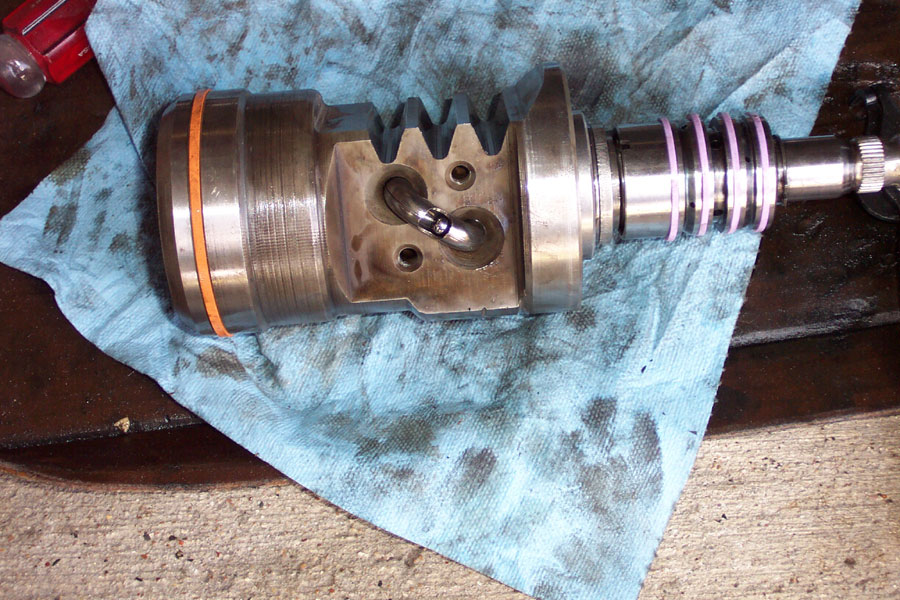

14reinstallwormgear.jpg Reinstalling the worm gear.  Notice that the ball retainer is not installed yet.  You will need to rotate the worm gear back and forth to get all the balls in.

You will need to remove the teflon seal at the bottom of the piston, and the o-ring underneath it.  Replace both of these with new ones from the kit.
14reinstallwormgear.jpg | Hits: 673 | Posted on: 7/30/05 | View original size (165.6 KB)

Reinstalling the worm gear. Notice that the ball retainer is not installed yet. You will need to rotate the worm gear back and forth to get all the balls in.

You will need to remove the teflon seal at the bottom of the piston, and the o-ring underneath it. Replace both of these with new ones from the kit.
