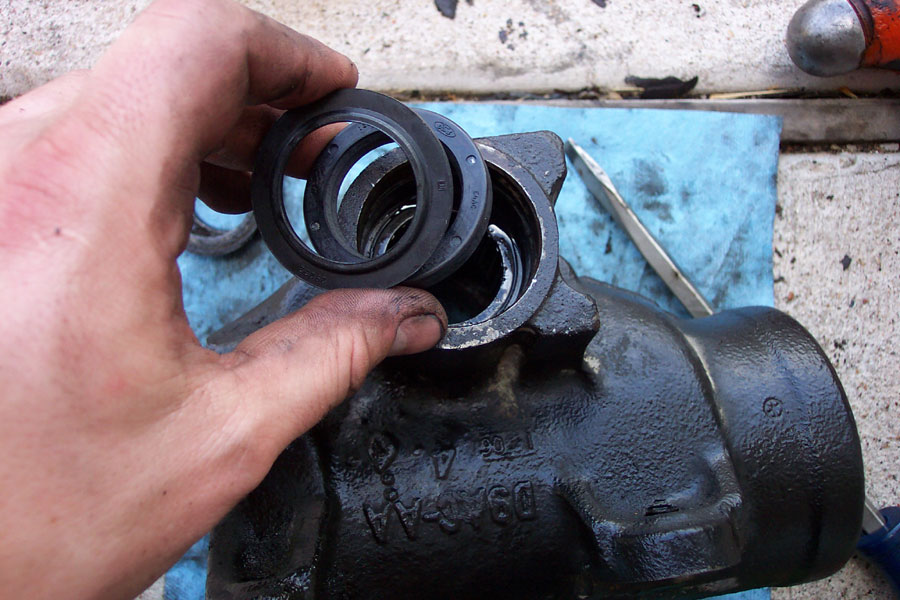

17installsectorseals.jpg Install the new sector shaft seals. This is the correct orientation. That lip is what makes the old snap ring difficult to remove. Again, just drive the seal far enough in to clear the snap ring.
17installsectorseals.jpg | Hits: 849 | Posted on: 7/30/05 | View original size (120.12 KB)

Install the new sector shaft seals. This is the correct orientation. That lip is what makes the old snap ring difficult to remove. Again, just drive the seal far enough in to clear the snap ring.
