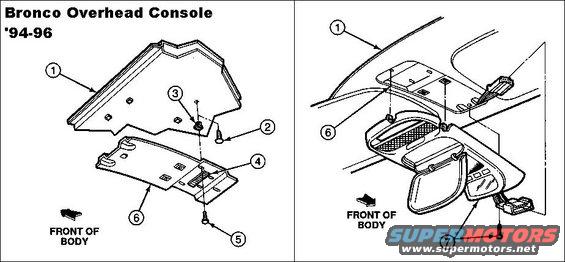

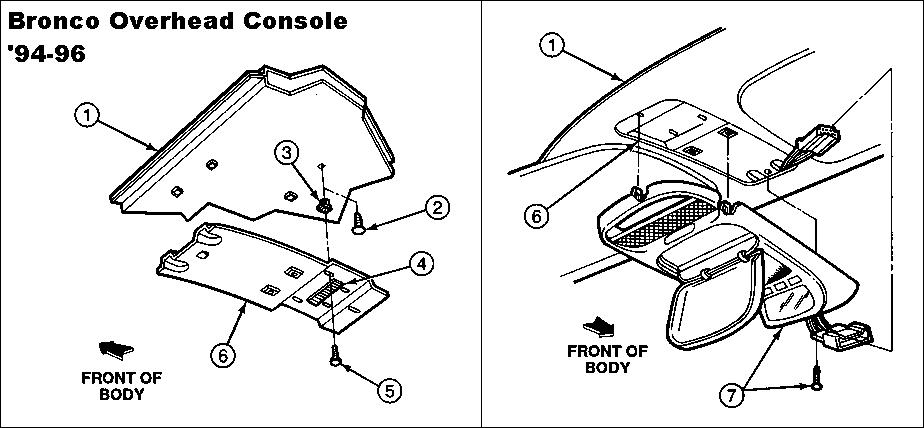

'94-96 Bronco Overhead Console Installation

1 Roof Trim Panel 51944
2 Pushpin (without Headliner) 390964-S
3 Nut (with Headliner) 383356-S
4 Tape ESB-M36102-A
5 Screw (4 Req'd) 55926-558
6 Console Mounting Rear Bracket 045B34
7 Roof Console Assembly 519A58

If you're looking for a Bronco overhead console, e-mail me thru my profile here or on almost any BBS dealing with Ford trucks or Crown Vics. I usually have a few.

--------------------------------------------------------------------------------

TSB 96-08-15 Erratic Compass & Map Lamp Operation - Vehicles Built Through 2/1/96
Publication Date: APRIL 8, 1996

LIGHT TRUCK:
1993-96 EXPLORER
1994-96 BRONCO

ISSUE: Map lamp switch and/or overhead compass function operation is irregular, and/or map lamp bulbs may burn out on some vehicles. Installation of revised parts should resolve this issue.

ACTION: Replace the map lamp, switch, compass and wiring harness with a revised Overhead Console Kit (F67Z-78519C42-AA). Refer to Instruction Sheet #7151, included with the kit, for service procedure.

The Overhead Console Kit (F67Z-78519C42-AA) includes the following:
One (1) Map Lamp Assembly
One (1) Map Lamp Button
One (1) Compass
One (1) Wiring Harness
One (1) Modification Label
One (1) Instruction Sheet (I.S. #7151)

PART NUMBER PART NAME
F67Z-78519C42-AA Overhead Console Kit

OTHER APPLICABLE ARTICLES: NONE
WARRANTY STATUS: Eligible Under The Provisions Of Bumper To Bumper Warranty Coverage

OPERATION DESCRIPTION TIME
960815A Replace Map Lamp And Console Assembly 0.3 Hr.
