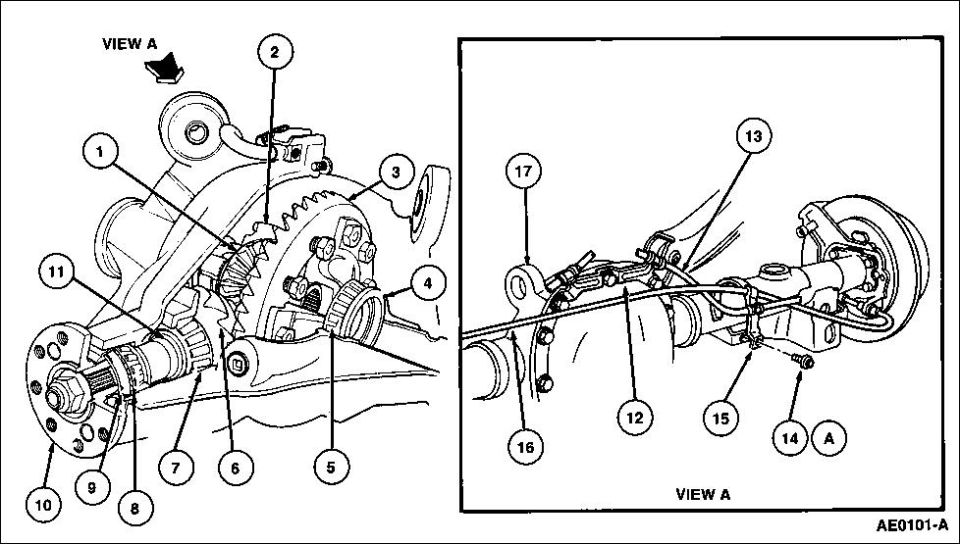

8.8" Differential Cutaway with companion flange

1 Differential Side Gear 4236
2 Differential Carrier 4204
3 Ring Gear (part of 4209)
4 Differential Bearing Shim 4067
5 Differential Bearing 4221
6 Pinion Gear (part of 4209)
7 Rear Pinion Bearing 4630
8 Front Pinion Bearing 4621
9 Pinion Seal 4676
10 Pinion Companion Flange 4851
11 Pinion Bearing Collapsible Spacer 4662
12 Differential Rear Cover 4033
13 Brake Fluid Line
