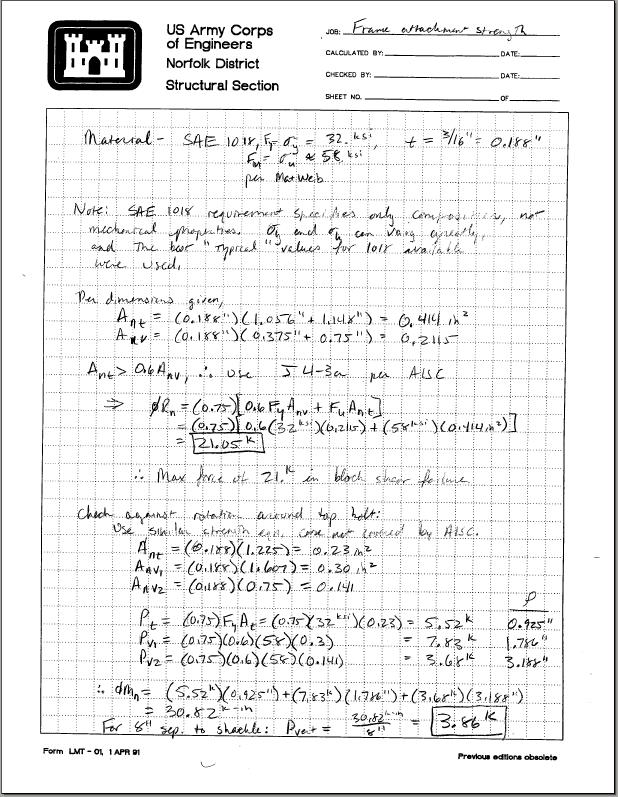

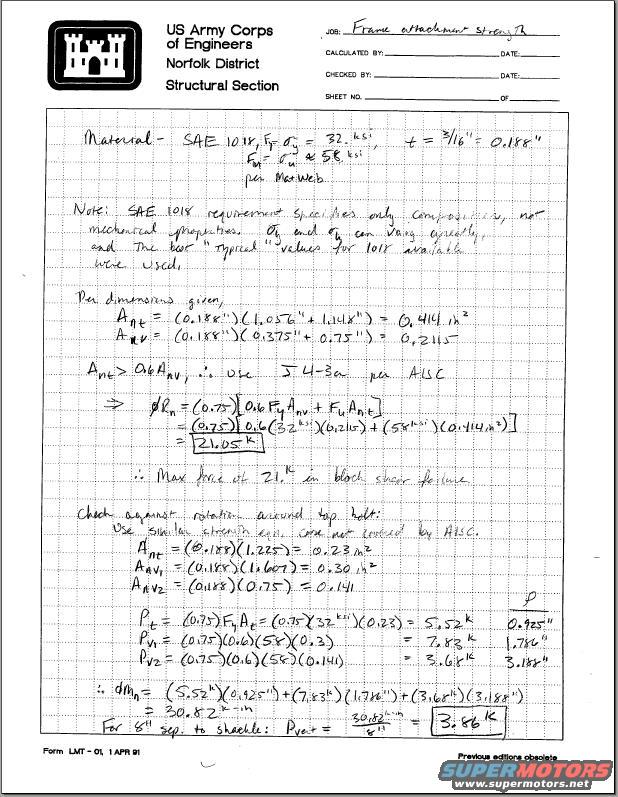

scannedcalcs.jpg I was asked for calcs and an illustration explaining why I said the factory mounting holes in the frame were insufficient -- these are the drawings of my first try at a bumper mount, and a set of calcs illustrating why that mount would not have done the job.
