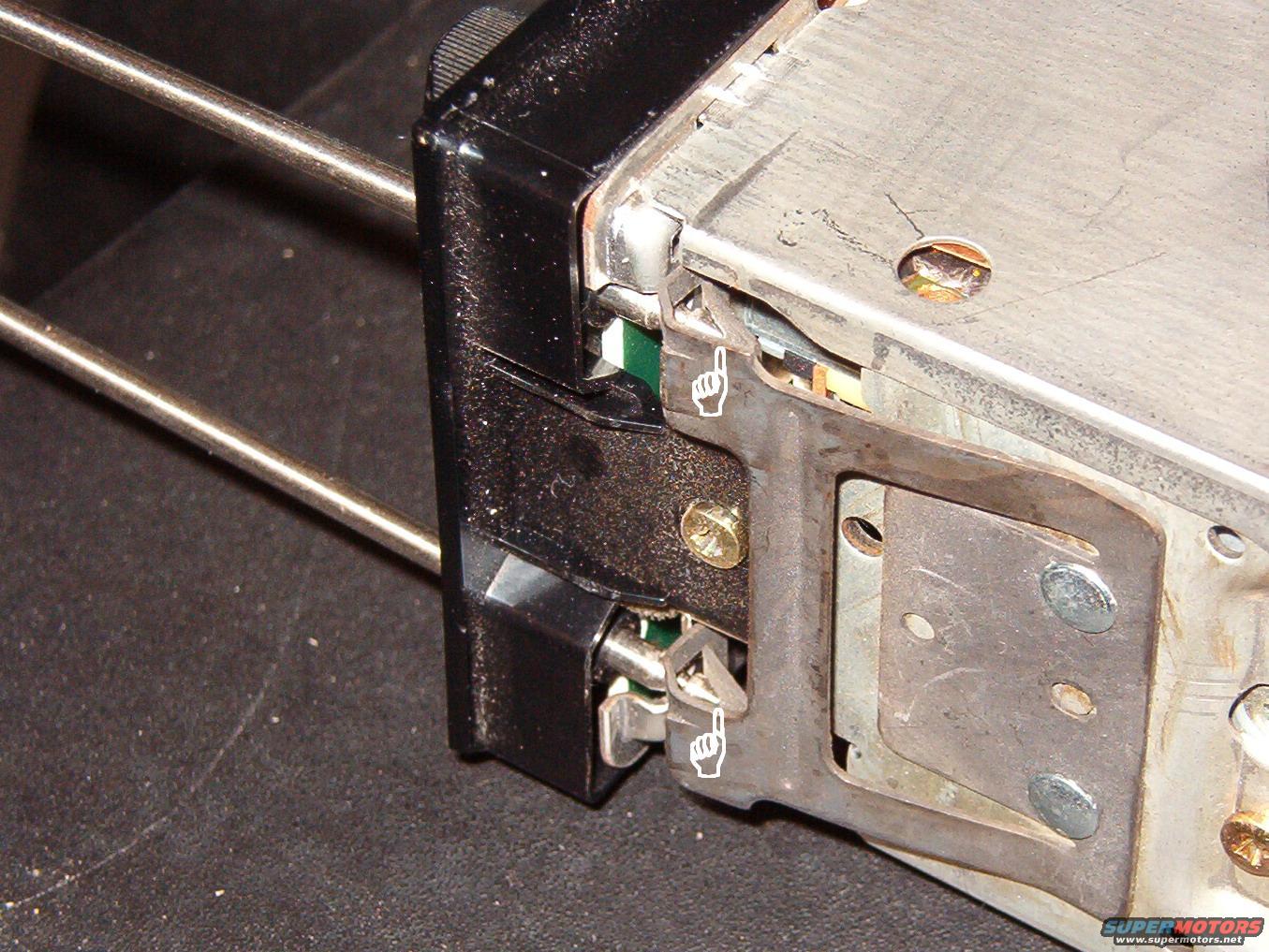

As the tool is inserted, the tapered tip rides up the ramp of the clip, compressing the spring & drawing the catch inward.
