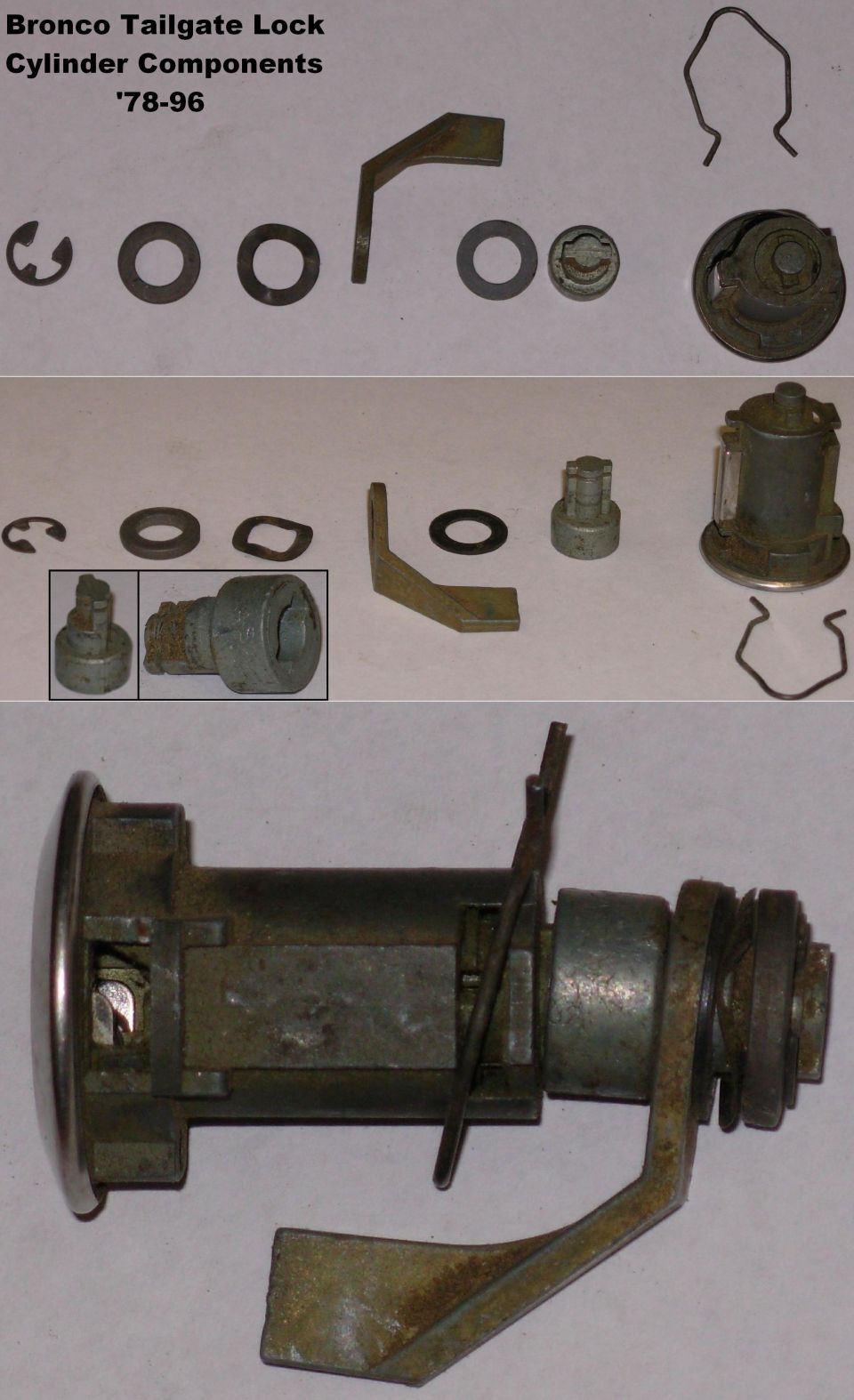

tailgatelockparts.jpg Lock Cylinder for '78-96 Bronco tailgate
https://www.npdlink.com/product/lock-cylinder-and-keys-tailgate/207568/80870

The parts are shown in factory order:
E-ring
Spacer
Spring washer
Paddle
Flat washer
Extension
Hairpin
Lock Cylinder

The switch assembly (permanently attached to the t/g wiring harness) fits around the extension in the insets.

TSB 99-24-02 Service PN: F6TZ-9821984-AA

I usually keep spare lock cylinders, so if you can't find one locally, e-mail me thru my profile here.  As of 7/18, I have 8 with keys & 1 without.

[url=http://www.supermotors.net/registry/media/768802][img]http://www.supermotors.net/getfile/768802/thumbnail/tglockcyls.jpg[/img][/url]

SEE THE NEXT SEVERAL PICS...
