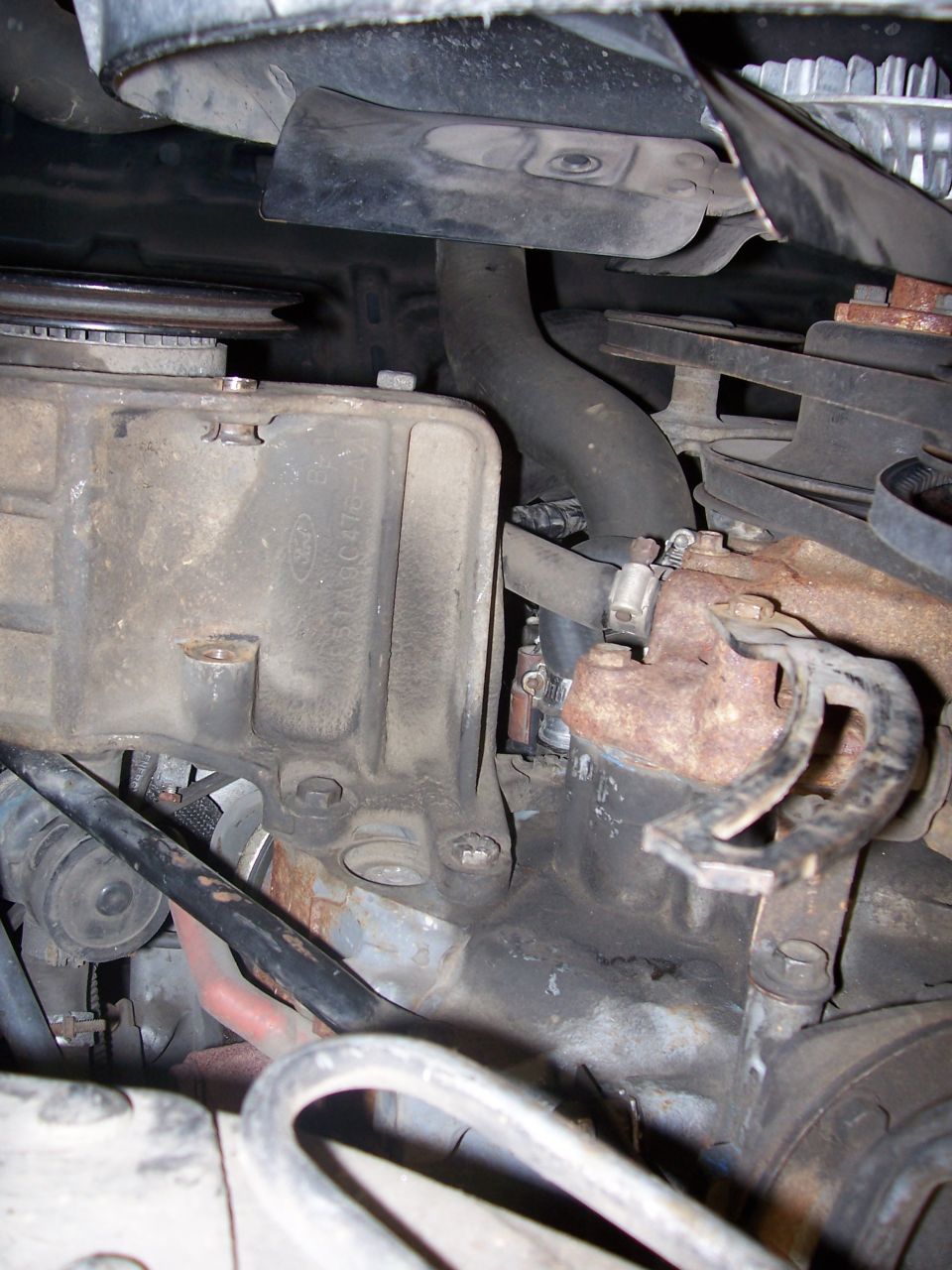

bronco-3g-alt-install-002.jpg This is underneath looking up. The alt goes on that bracket (left center) and the bottom attaches to the swing arm (right center). The air pump pulley can be seen above the alt mounting bracket.
