clusterlfl_on.jpg | Hits: 4882 | Posted on: 9/20/06 | View Low-Res

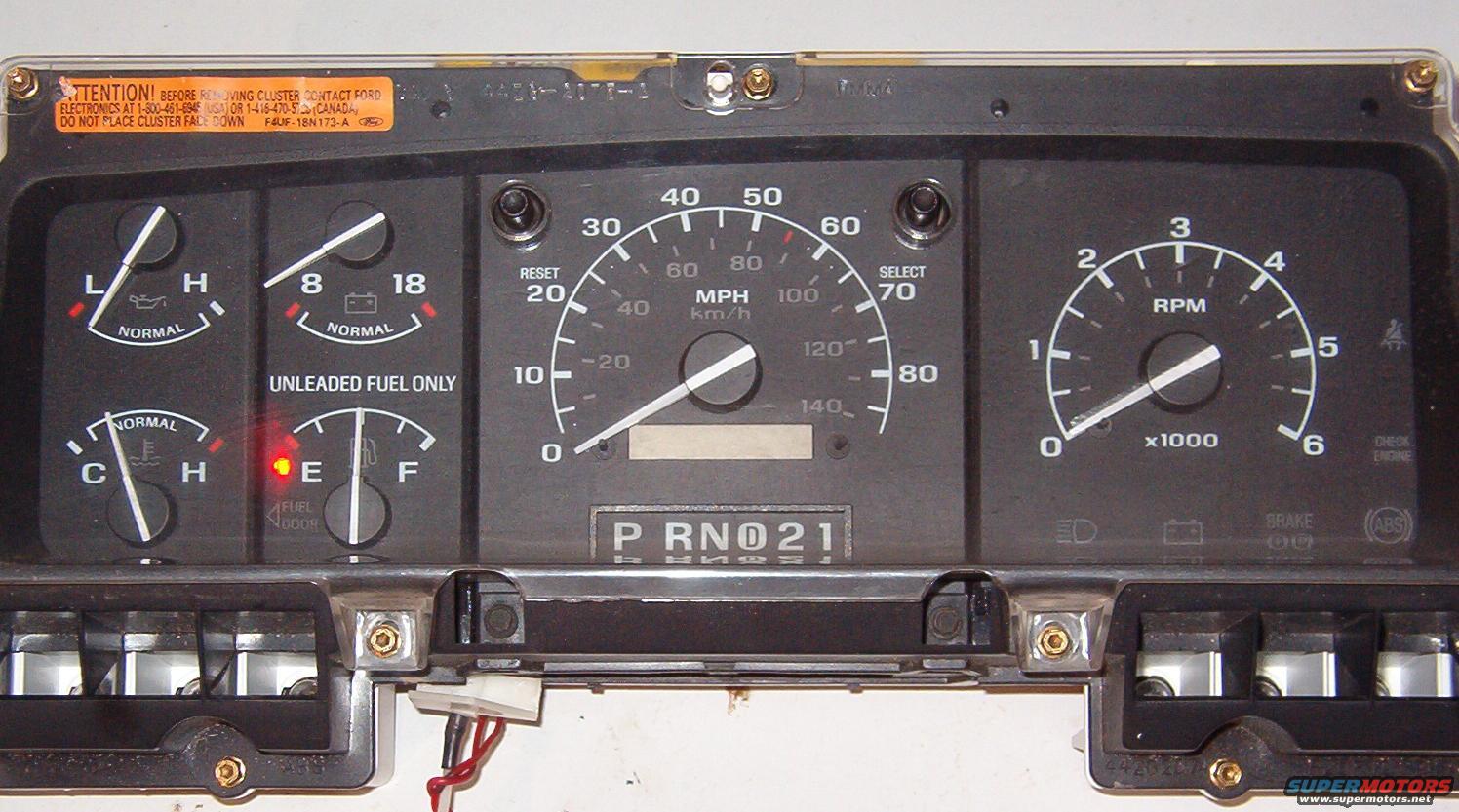

When on, the light is hard to miss, but not too distracting.
IF THE IMAGE IS TOO SMALL, click it.

The 7 gold screws (7/32" or 5.5mm hex & T10) around the edge hold the lens & blackout ring on the white cluster body. The 2 raised near the fuel gauge & hi-beam indicator hold the lens on the blackout. The 2 black screws recessed below the speedo hold the shift indicator to the PSOM.
