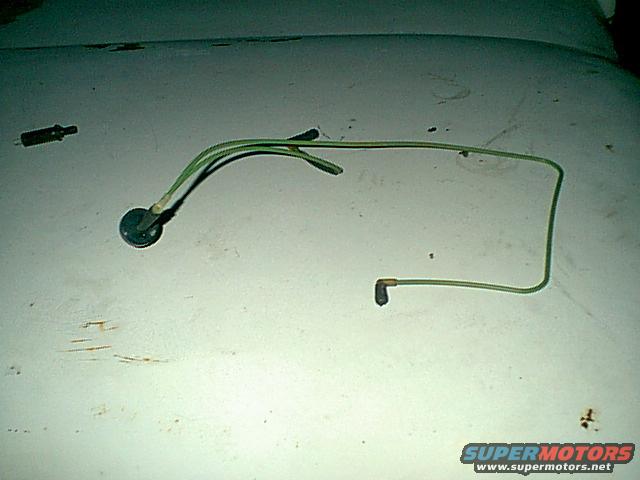

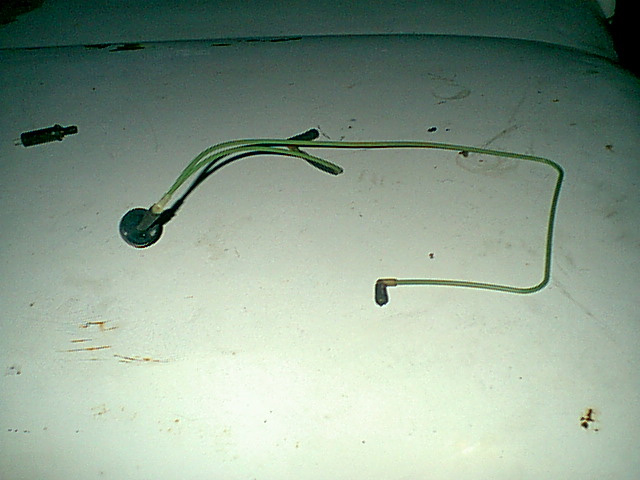

egr-loop-ready-to-install.jpg here is the EGR system loop (there is the cruse control cut out switch in the upper right but that is not part of the EGR system)
egr-loop-ready-to-install.jpg | Hits: 687 | Posted on: 10/31/06 | View original size (97.46 KB)

here is the EGR system loop (there is the cruse control cut out switch in the upper right but that is not part of the EGR system)
