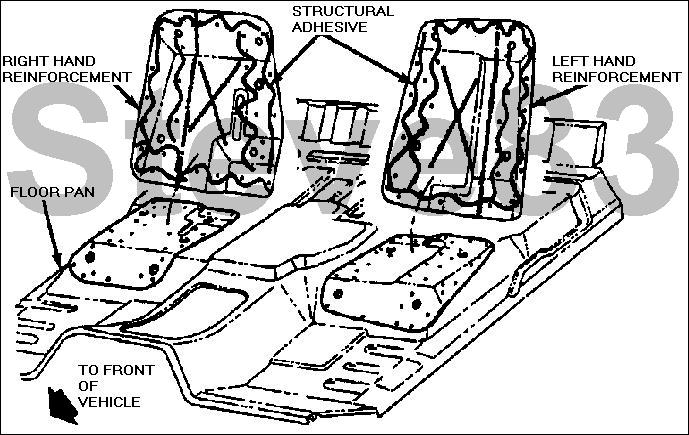

tsb900612floorreinf2.jpg 11. Apply 1/4"-3/8" (6.35-9.53 mm) beads of 3M Structural Adhesive to the bottom surface of both reinforcements. NOTE: ADHESIVE HARDENS WITHIN 30 MINUTES. PERFORM STEPS 10 THROUGH 13 AS SOON AS POSSIBLE BEFORE ADHESIVE CURES. 12. Place the left hand reinforcement on top of the floor pan sheet metal on the driver's side. 13. Secure the reinforcement to the floor pan with the (4) seat track mounting bolts and (4) flat washers. 14. Place the right hand reinforcement on top of the floor pan sheet metal on the passenger's side. 15. Secure the reinforcement to the floor pan with the (4) seat track mounting bolts and (4) flat washers. _______________________________________________ See also: [url=https://www.supermotors.net/registry/2742/57096-2][img]https://www.supermotors.net/getfile/516397/thumbnail/welded3.jpg[/img][/url]
tsb900612floorreinf2.jpg | Hits: 1992 | Posted on: 1/1/07 | View original size (87.16 KB)

11. Apply 1/4"-3/8" (6.35-9.53 mm) beads of 3M Structural Adhesive to the bottom surface of both reinforcements.

NOTE: ADHESIVE HARDENS WITHIN 30 MINUTES. PERFORM STEPS 10 THROUGH 13 AS SOON AS POSSIBLE BEFORE ADHESIVE CURES.

12. Place the left hand reinforcement on top of the floor pan sheet metal on the driver's side.

13. Secure the reinforcement to the floor pan with the (4) seat track mounting bolts and (4) flat washers.

14. Place the right hand reinforcement on top of the floor pan sheet metal on the passenger's side.

15. Secure the reinforcement to the floor pan with the (4) seat track mounting bolts and (4) flat washers.
