ISSUE: The Remote Keyless Entry (RKE) system may be inoperative. This may be caused by several different items.

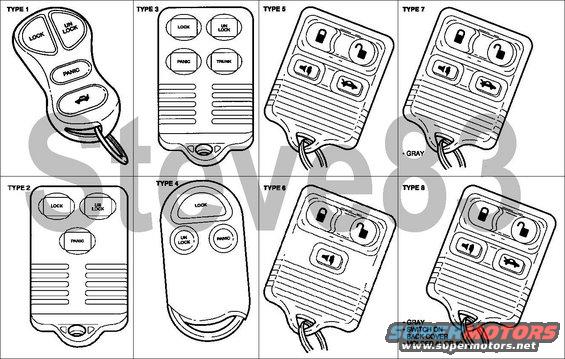

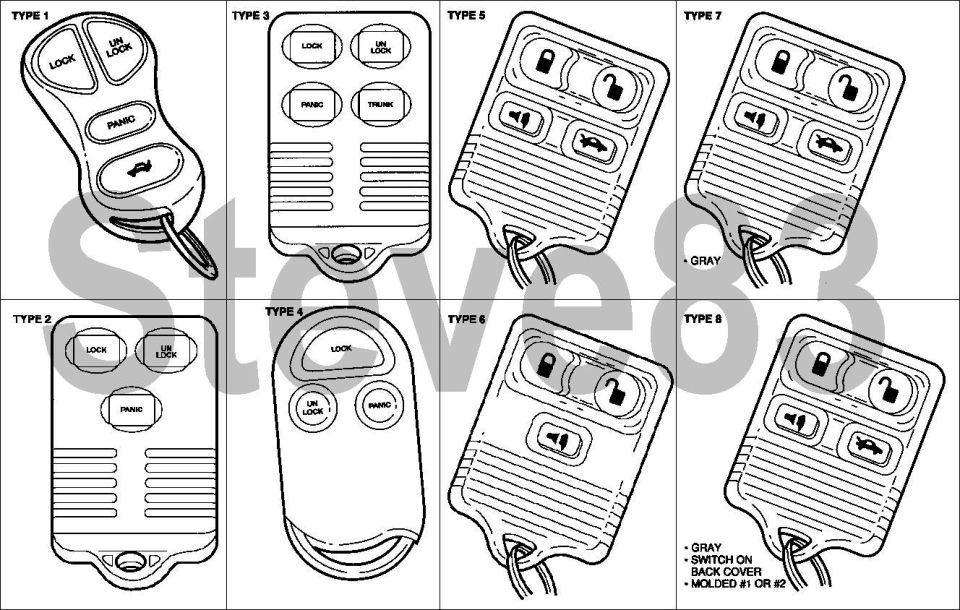

ACTION: Refer to the Chart and text for tips on servicing customer concerns with the RKE system. FIGURE numbers in the first chart refer to remote TYPE in the second.
NOTE: WHEN SERVICING THE RKE SYSTEM, THE VEHICLE SHOULD BE IN THE FOLLOWING STATE: THE IGNITION SHOULD BE IN THE OFF POSITION AND ALL LIGHT SWITCHES MUST BE IN THE OFF POSITION. ISOLATE THE VEHICLE SO THAT NO RKE TRANSMITTERS ARE OPERATED WITHIN AN 18 METER (60 FT) RADIUS.
REFERENCE PROCEDURE STEPS FOR RKE PROGRAMMING
A. Cycle ignition from OFF to RUN or ACC eight times within 10 seconds, ending in RUN or ACC. All doors will lock then unlock to confirm programming mode. Press any button on 1st remote transmitter. Door locks will cycle to confirm programming. Press any button on 2nd transmitter (up to 4 transmitters total possible). Turn ignition to OFF. The door locks will lock then unlock to confirm programming.
NOTE: ESCORT/TRACER WITH SINGLE DOOR REMOTE ENTRY SYSTEMS WILL CYCLE THE DRIVER'S DOOR LOCK ONLY.
B. (Ford RKE) Turn ignition to RUN or ACC. Momentarily jump pins in programming connector located in left rear quarter panel area. All doors will lock then unlock to confirm programming mode. Press any button on 1st transmitter. Door locks will lock then unlock to confirm programming. Press any button on 2nd transmitter (up to 4 transmitters total possible). The door locks will lock then unlock to confirm programming. Turn ignition to OFF. Locks will again cycle to indicate end of programming mode.
C. (DDM) Enter 5-digit permanent entry code into the keyless entry keypad. Within 5 seconds of pressing last button of code, press the 1/2 button. All doors will lock then unlock to confirm programming mode. Press any button on 1st transmitter within 5 seconds of pressing the 1/2 button. Locks will cycle to indicate successful programming. Press any button on 2nd transmitter (up to 4 transmitters total possible) within 5 seconds of previous transmitter (if keypad light goes out before all transmitters are programmed, the process must be repeated). Press the 7/8 and 9/0 buttons simultaneously on keypad to exit program mode.
D. (RAP) Cycle ignition from OFF to RUN or ACC five (5) times within 10 seconds, ending in RUN or ACC. All doors will lock then unlock to confirm programming mode. Press any button on 1st remote transmitter. Door locks will cycle to confirm programming. Press any button on 2nd transmitter (up to 4 transmitters total possible). Turn ignition to OFF. The door locks will lock then unlock to confirm programming.
E. (Nissan SEC) Enter vehicle, close and lock all doors. Insert and remove key from ignition six (6) times within 10 seconds. Instrument panel lights will flash to indicate original code has been erased. Turn ignition to the ACC position. Press LOCK button on 1st transmitter. Instrument panel lights will flash to confirm programming. To enter additional transmitters, unlock, then lock the doors using the power lock switch located on the driver door. Press LOCK button on additional transmitter (up to 4 transmitters total possible). Instrument panel lights will flash to confirm programming. Turn ignition to OFF.
F. (Econoline RKE) Turn ignition to RUN or ACC. Jump pins in programming connector located at the base of the steering column for entire programming mode procedure. All doors will lock then unlock to confirm porgramming mode. Press any button on the 1st transmitter. Door locks will cycle to confirm programming. Press any button on 2nd transmitter (up to 4 transmitters total possible). Turn ignition to OFF. The door locks will lock then unlock to confirm programming. Remove jumper used with programming connector.
G. (Ford RKE) Turn ignition to RUN or ACC. Momentarily jump pins in programming connector located in right rear quarter panel area. All doors will lock then unlock to confrim programming mode. Press any button on 1st transmitter. The door locks will lock then unlock to confirm programming. Press any button on 2nd transmitter (up to 4 transmitters total possible). Turn ignition to OFF. The door locks will lock then unlock to confirm programming.
H. (Lincoln RKE) Turn ignition to RUN or ACC. Momentarily jump pins in programming connector located behind glove compartment. All doors will lock then unlock to confirm programming mode. Press any button on 1st transmitter. The door locks will lock then unlock to confirm programming. Press any button on 2nd transmitter (up to 4 transmitters total possible). Turn ignition to OFF. The door locks will lock then unlock to confirm programming.
I. (Mazda RKE) Turn ignition to RUN or ACC. Momentarily jump pins in programming connector located behind glove compartment. The horn will chirp to confirm programming mode. Press any button on 1st transmitter. The horn will chirp to confirm programming. Press any button on 2nd transmitter (up to 4 transmitters total possible). The horn will chirp to confirm programming. Turn ignition to OFF. The horn will chirp one last time to indicate end of programming mode.
J. ('94-96 Bronco & F-series, Ford RKE) Turn ignition to RUN or ACC. Momentarily jump pins in programming connector located at the base of the steering column. All doors will lock then unlock to confirm programming mode. Press any button on 1st transmitter. The door locks will lock then unlock to confirm programming. Press any button on 2nd transmitter (up to 4 transmitters total possible). Turn ignition to OFF. The door locks will lock then unlock to confirm programming.
K. (Lincoln DDM) Cycle ignition from OFF to RUN or ACC four (4) times within 3 seconds, ending in RUN or ACC. All doors will lock then unlock to confirm programming mode. Press any button on 1st remote transmitter. Door locks will cycle to confirm programming. Press any button on 2nd transmitter within 7.5 seconds (up to 4 transmitters total possible). Turn ignition to OFF or wait 7.5 seconds. All doors will lock then unlock to confirm programming mode.
L. (WDS) Diagnostic method of programming transmitters is as follows:
1. Choose Service Bay Functions from the service function card.
2. Choose Driver Door Module (DDM).
3. Choose Key Fob Programming.
4. Press any button on the remote entry transmitter.
5. Choose Fob 1, 2, 3, or 4 and press Store.
6. Repeat Step L4 for additional transmitters.
7. Press Cancel to get out of menu (you may have to press Cancel twice).
NOTE: FOR FUTURE VEHICLE STRATEGIES, THESE PROGRAM PROCEDURES WILL BE COMMONIZED.
WARNING: WHEN PROGRAM MODE HAS BEEN ENTERED, ANY TRANSMITTER FUNCTIONED WITHIN 30 METERS (98 FEET) OF THE VEHICLE CAN GET PROGRAMMED TO THAT VEHICLE AND IN THE PROCESS ERASE OUT ALL PREVIOUSLY STORED TRANSMITTER CODES.
* TYPES 2 AND 3 TRANSMITTERS (with text on the buttons; a.k.a.: GQ43VT4T, 3165189) ARE INTERCHANGEABLE.
- Type 2 (no Trunk) F6UZ15K601AB
- Type 3 (w/Trunk) F5DZ15K601B
* TYPES 1, 7, AND 8 ARE INTERCHANGEABLE.
* TYPES 5 AND 6 ARE INTERCHANGEABLE.
* TYPE 4 IS UNIQUE AND CANNOT BE USED ON ANY OTHER VEHICLE.
OTHER APPLICABLE ARTICLES: 93-24-12
SUPERSEDES: 97-19-8
WARRANTY STATUS: INFORMATION ONLY
OASIS CODES: 112000, 203000, 203200, 204000, 205000
