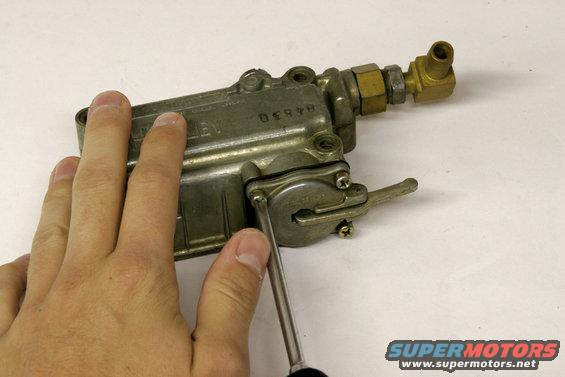

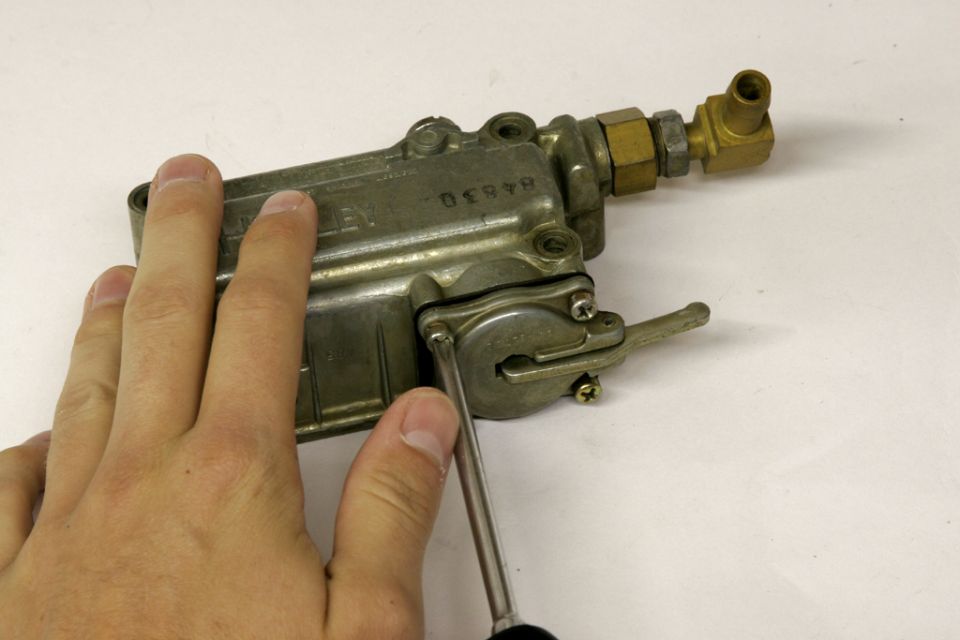

qft19.jpg When rebuilding an older carb, it's a good idea to change the accelerator pump diaphragm, to access it remove these four screws and lift off the cover.
qft19.jpg | Hits: 4905 | Posted on: 1/16/07 | View original size (496.2 KB)

When rebuilding an older carb, it's a good idea to change the accelerator pump diaphragm, to access it remove these four screws and lift off the cover.
