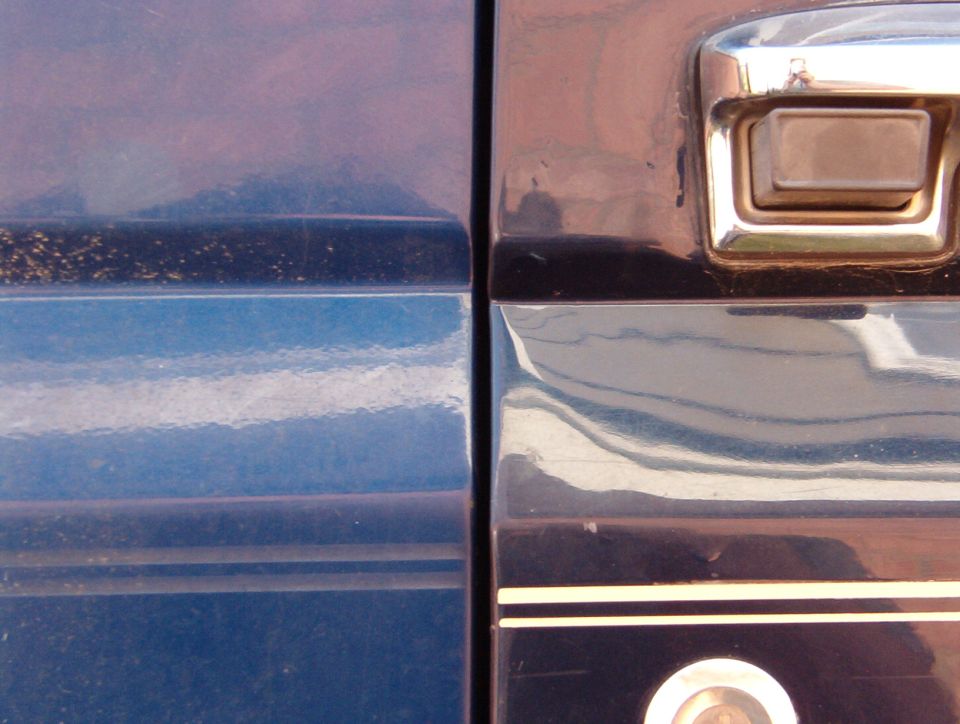

The first step is to align the strike bolt so the door bends are perfectly aligned with the body bends when it's fully closed. Striker bolt torque is 24-33lb-ft (33-45Nm). This door is about 1/16" low judging by the crease below the button. Ignore the pinstripes. IF THE IMAGE IS TOO SMALL, click it.
![02strikealign.jpg The first step is to align the strike bolt so the door bends are perfectly aligned with the body bends when it's fully closed. Striker bolt torque is 24-33lb-ft (33-45Nm). This door is about 1/16" low judging by the crease below the button. Ignore the pinstripes.
IF THE IMAGE IS TOO SMALL, click it.
[url=https://www.supermotors.net/registry/media/1160080][img]https://www.supermotors.net/getfile/1160080/thumbnail/doorralign.jpg[/img][/url]
For door alignment, see this post:
http://www.fourdoorbronco.com/board/showthread.php?6884-Door-Alignment
For pics of another door being installed, see this album:
http://www.supermotors.net/registry/2742/66137-4
Go to the NEXT pic...](https://www.supermotors.net/getfile/482882/fullsize/02strikealign.jpg)
