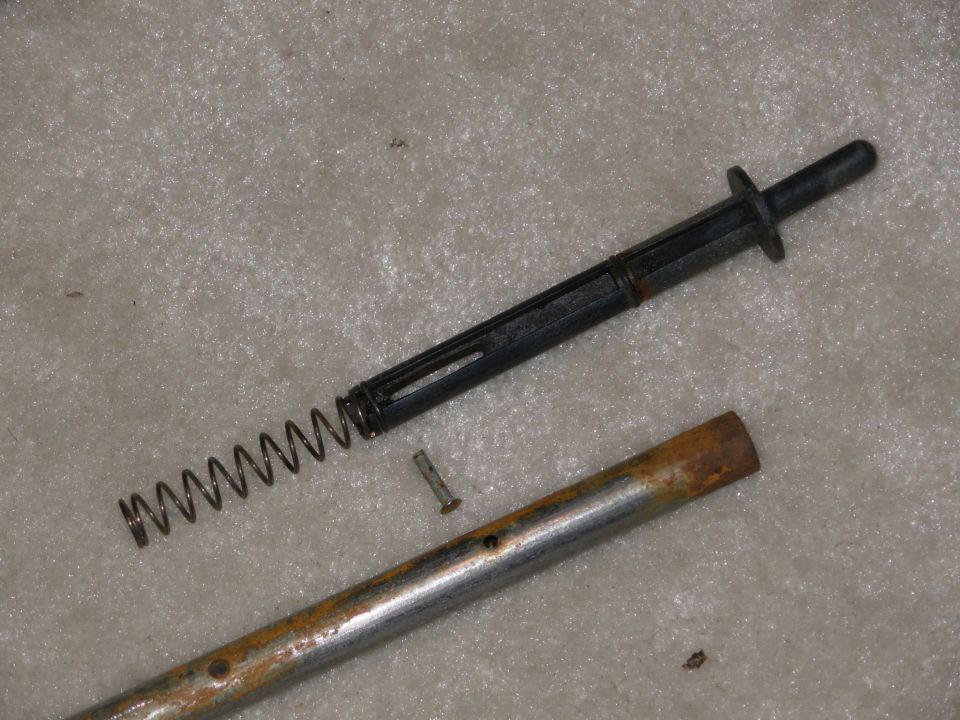

19drawrodend.jpg Work the catch pin out without tearing the O-rings, and slide the draw rod out of the cover. Then remove the other catch pin's outboard rivet.
19drawrodend.jpg | Hits: 1699 | Posted on: 4/25/07 | View original size (1.22 MB)

Work the catch pin out without tearing the O-rings, and slide the draw rod out of the cover. Then remove the other catch pin's outboard rivet.
