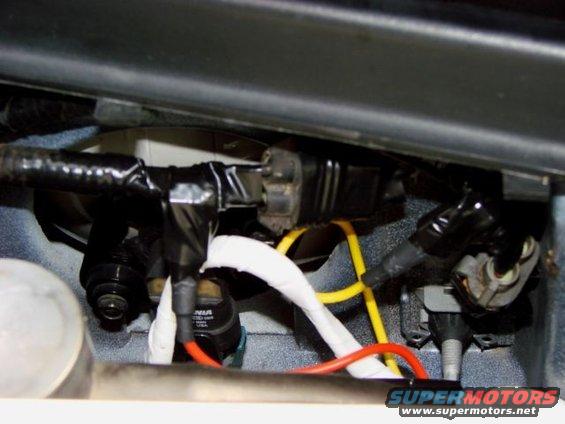

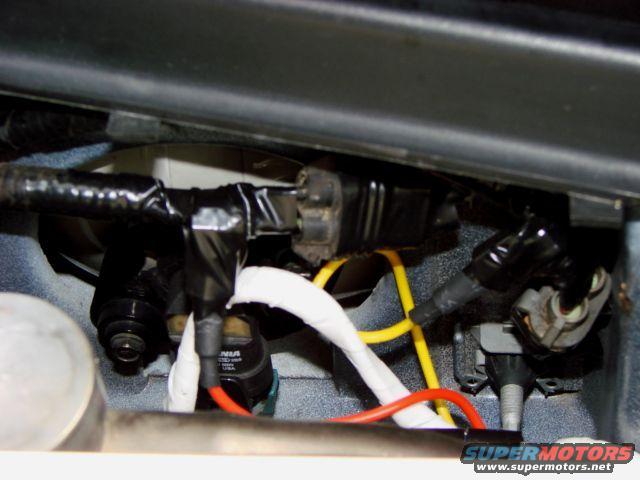

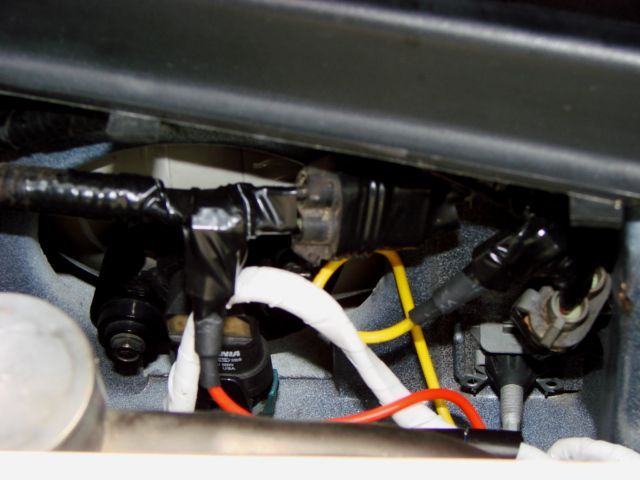

headlight-wiring-021.jpg Taps for lighting triggers VGA  I found wiring taps that allow you to use male spade connectors.  You clamp the tap onto the wire and plug in the spade connector 90° to the run of the existing wire.  Pretty cool!  That is what I used to provide the trigger for the new relays.  They are shown Taped up here.  Yellow for Low Orange for High.
