I've abandoned this idea - I'm going with an '04-13 E150 rear disc axle.

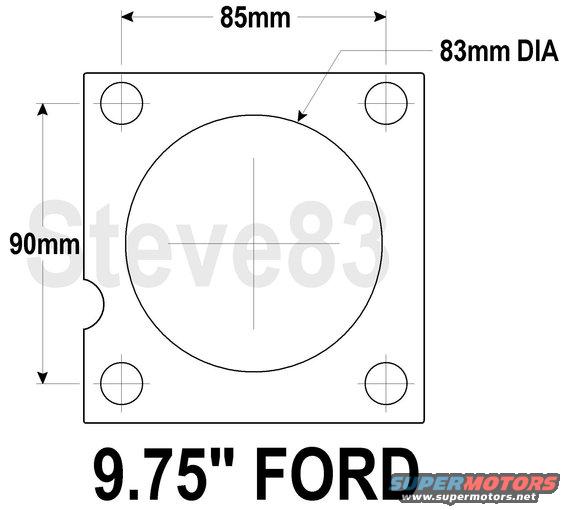

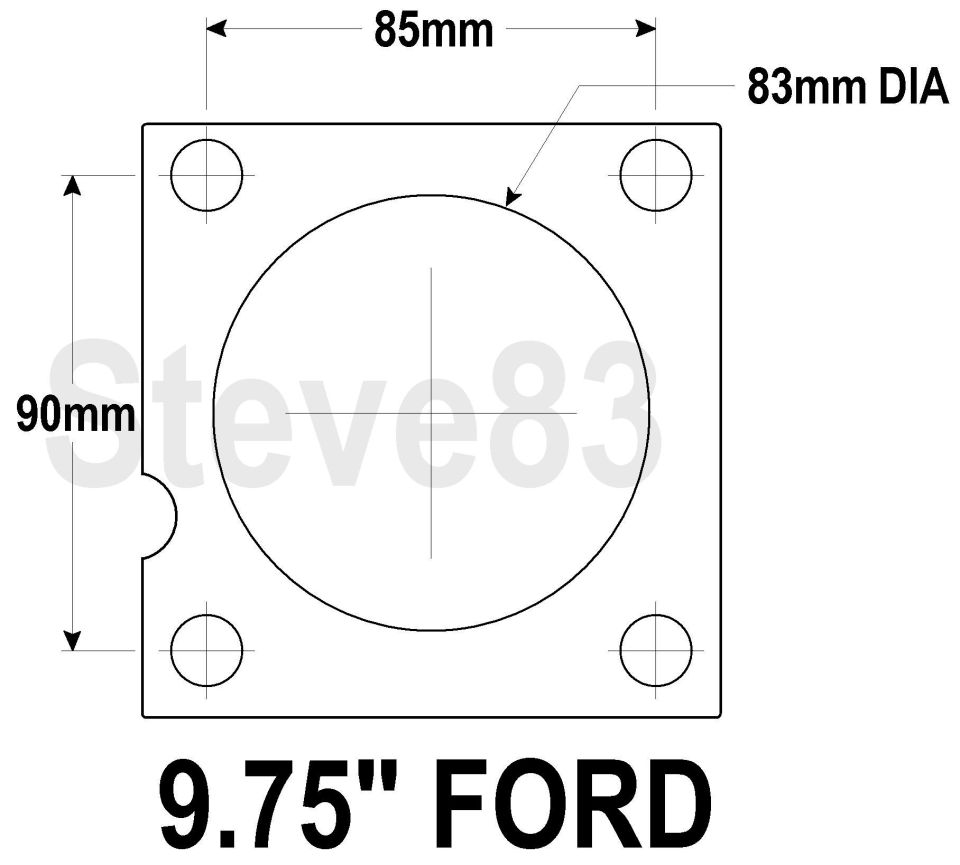

Brake Flange Details

Compare to:


Flange-to-Hub Face Offset: 59mm
Axle Shaft Diameter: 41mm
Flange Bolt Diameter: 12mm coarse
