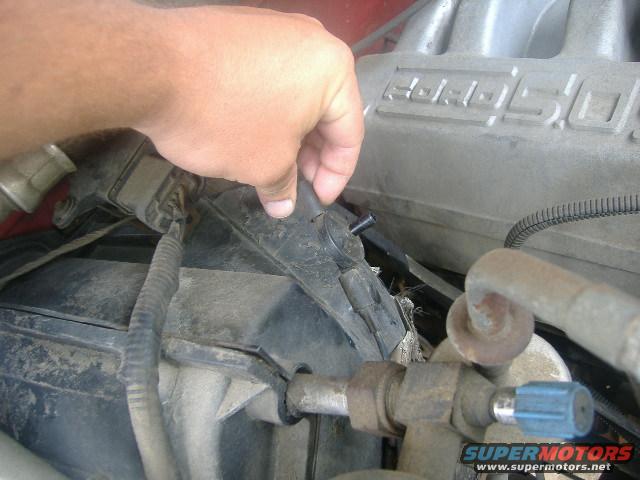

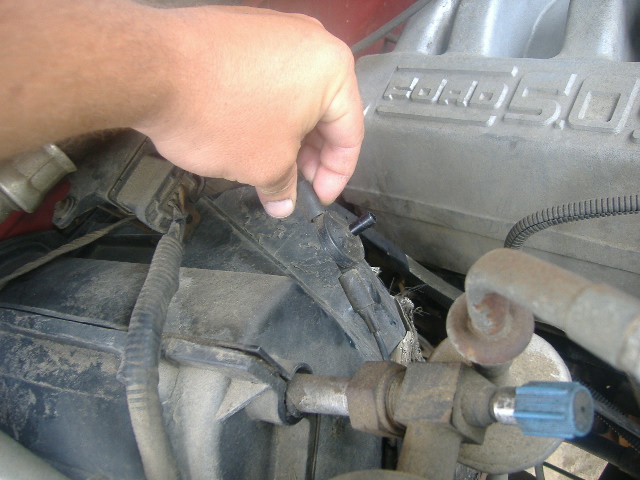

dscf1951.jpg Where to look...start on the passenger side.  See that blue cap?  That's where the AC is filled.  Follow the line back to where it runs into that black box.  On the side facing the engine, look for the three-way connector.  My vacuum line was the center nipple.
dscf1951.jpg | Hits: 954 | Posted on: 7/31/07 | View original size (99.7 KB)

Where to look...start on the passenger side. See that blue cap? That's where the AC is filled. Follow the line back to where it runs into that black box. On the side facing the engine, look for the three-way connector. My vacuum line was the center nipple.
