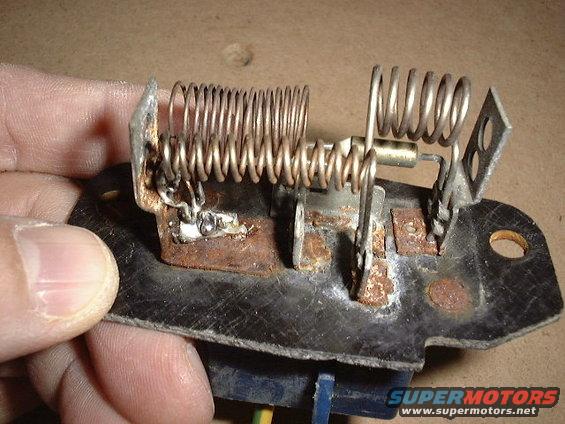

dsc00549.jpg I drilled a 1/8in hole through the socket and added a wire. I soldered the wire to a piece of solid copper bus wire and lopped it around the base of the two resistor coils on the left. Then  soldered everything, kind of blobby, but its a good connection.
dsc00549.jpg | Hits: 441 | Posted on: 8/11/07 | View original size (86.48 KB)

I drilled a 1/8in hole through the socket and added a wire. I soldered the wire to a piece of solid copper bus wire and lopped it around the base of the two resistor coils on the left. Then soldered everything, kind of blobby, but its a good connection.
