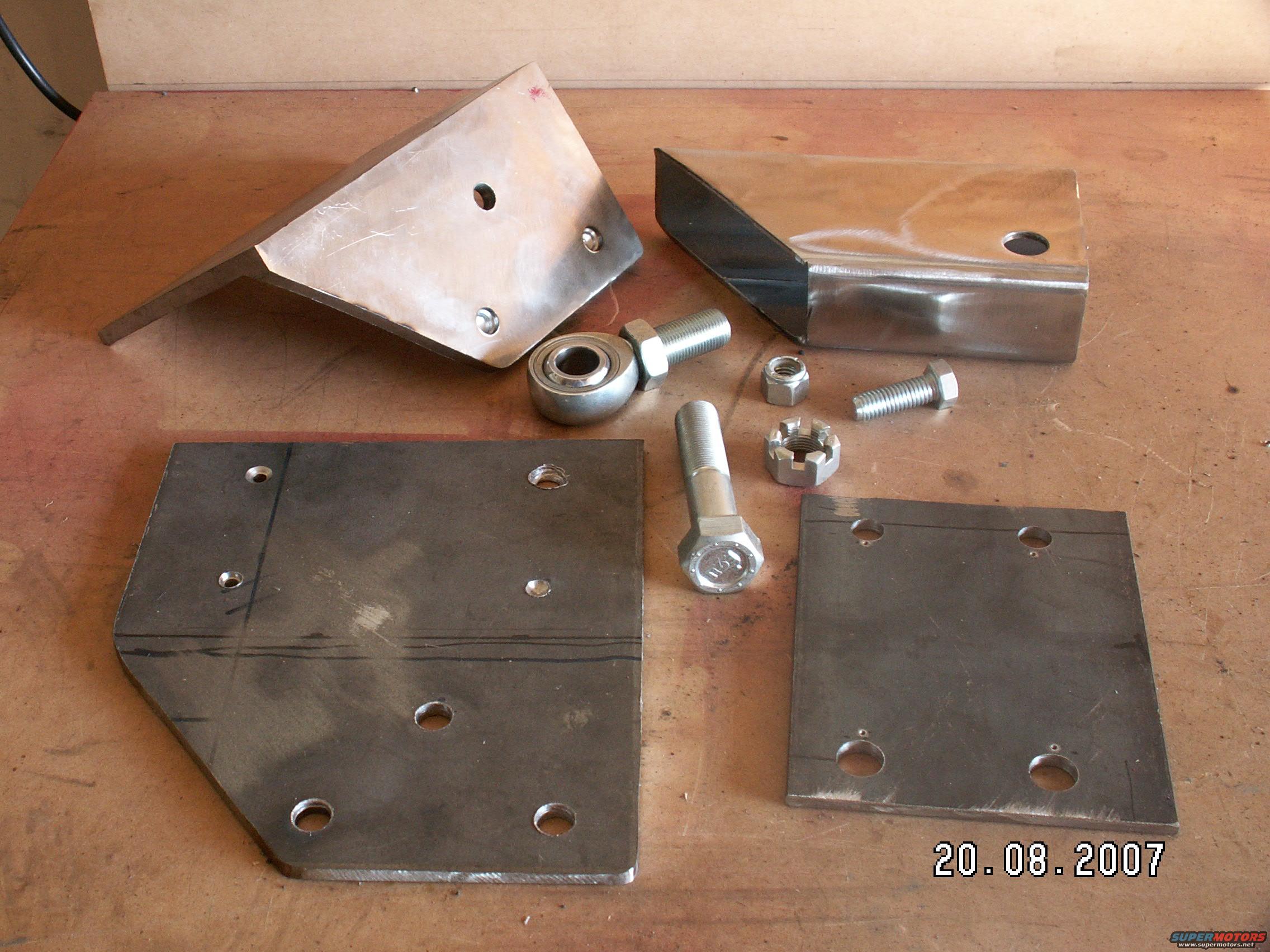

four-link-bracket-parts-for-chassis-lower-link.jpg Here are some the components for my four link rear suspension. This is for the lower link chassis bracket. The bracket has to be sturdy and fixed alone to chassis rail as a crossmember would of fouled driveshaft. The angle plate is 9mm (3/8"), the inner and outer flat plates for the chassis is 6mm (1/4"), the rod end is a BulletProof Steering USA Stage II rod end with one of their 3/4" F911 3.5" bolts, the other is a 1/2" Grade 8 bolt and Nylock nut for fixing all plates to chassis. Not shown is the 9mm (3/8") gusset to go between the box section and outer upright and the .120 wall 2" tube for the diagonal cross brace.
