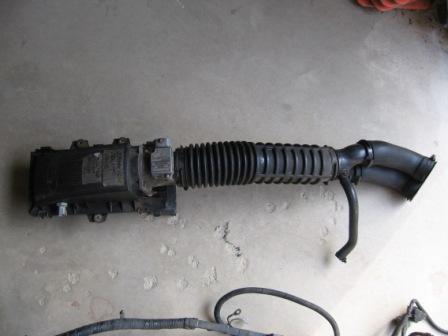

maf-airbox--snorkel-(1).jpg Here's the airbox with MAF attached & the snorkels to the Throttlebody. I have the air intake from the bottom of the airbox to the top of the radiator support, but it looks identical to the ones on SD setups, so I didn't think anyone would need it.
