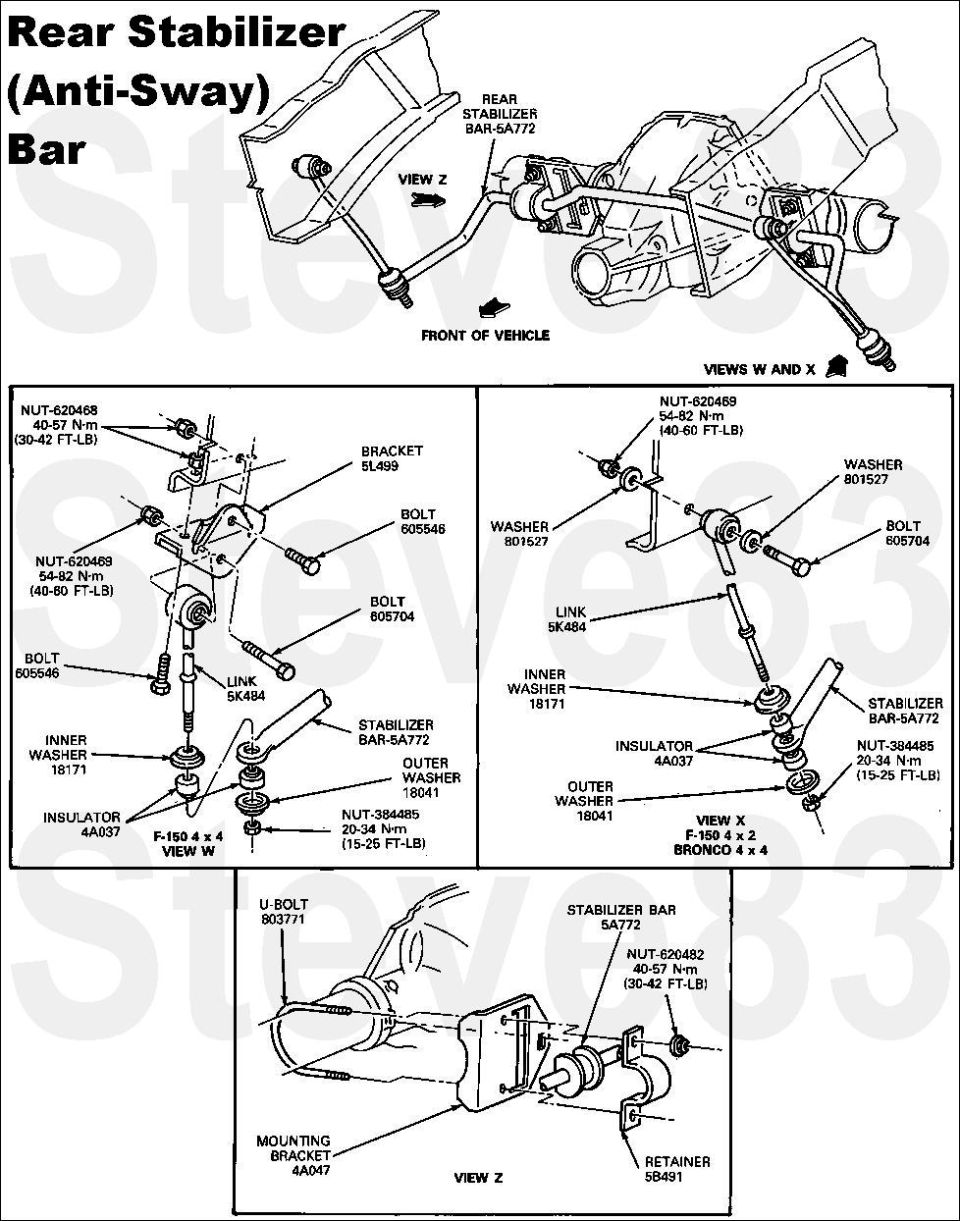

Rear Stabilizer (AntiSway) Bar
IF THE IMAGE IS TOO SMALL, click it.
AFAIK, all Broncos use Energy 4.5123G rear sway bar bushing set. (7/8" bar, 2" bushing)
Apparently, Lightnings use the 4WD end links.
18041 End Link Outer Washer
18171 End Link Inner Washer
384485S2 End Link Nut
4A047 Axle Bracket E7TZ5C489A
5486 Axle Bushing Clamp E4TZ5486C
5A772 Stabilizer Bar E7TZ5A772G
5K484 End Link EOTZ5K484C
N605546S2 End Link Bracket Bolt
N605704S2 End Link Bolt N605704S439
N620468S2 End Link Bracket Nut
N620469S2 End Link Bolt Nut
N620482S2 U-bolt Nut
N801527S End Link Bolt Washer
N802335S U-bolt

Removal and Installation: F-150-250-350 (4x2 and 4x4), F-Super Duty Chassis Cab, Motorhome Chassis, and Bronco

1. Remove nut from lower end of stabilizer bar link.
2. Remove outer washer and insulator. Disconnect stabilizer bar from link.
3. Remove inner insulators and washers. Disconnect link from frame by removing nuts and bolts.
4. Remove nuts or bolts which fasten U-bolts, brackets and retainers to rear axle.

For installation, follow removal procedure in reverse order. Tighten fastener to specifications.

See also:
.
