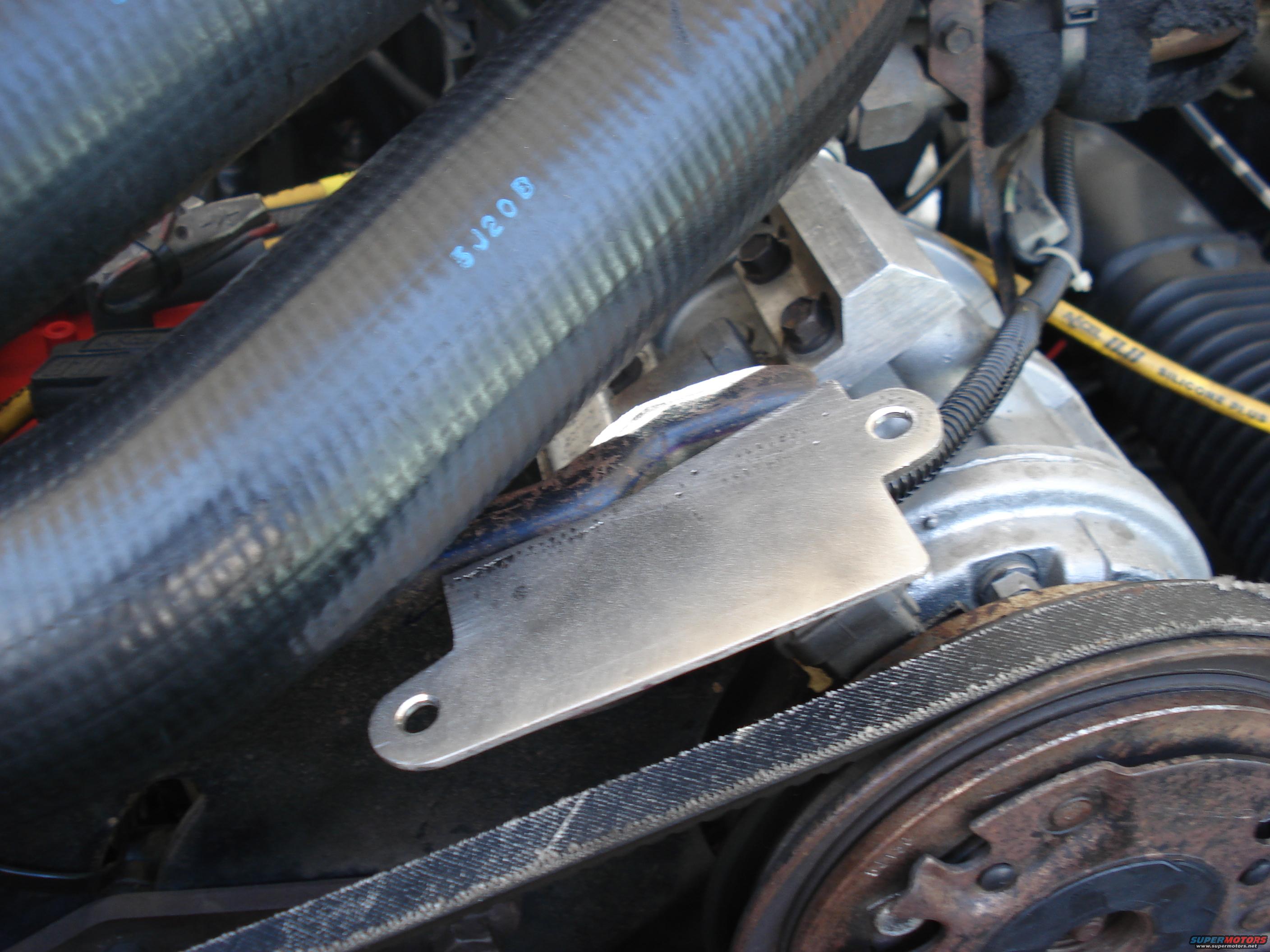

18.jpg I was going to locate the module in the driver side fender, but decided to make the harness shorter and locate it in the way of the air flow produced by the fan. Made a small bracket to place the heat sink and it ended up here:
18.jpg | Hits: 488 | Posted on: 11/5/07 | View original size (2.35 MB)

I was going to locate the module in the driver side fender, but decided to make the harness shorter and locate it in the way of the air flow produced by the fan. Made a small bracket to place the heat sink and it ended up here:
