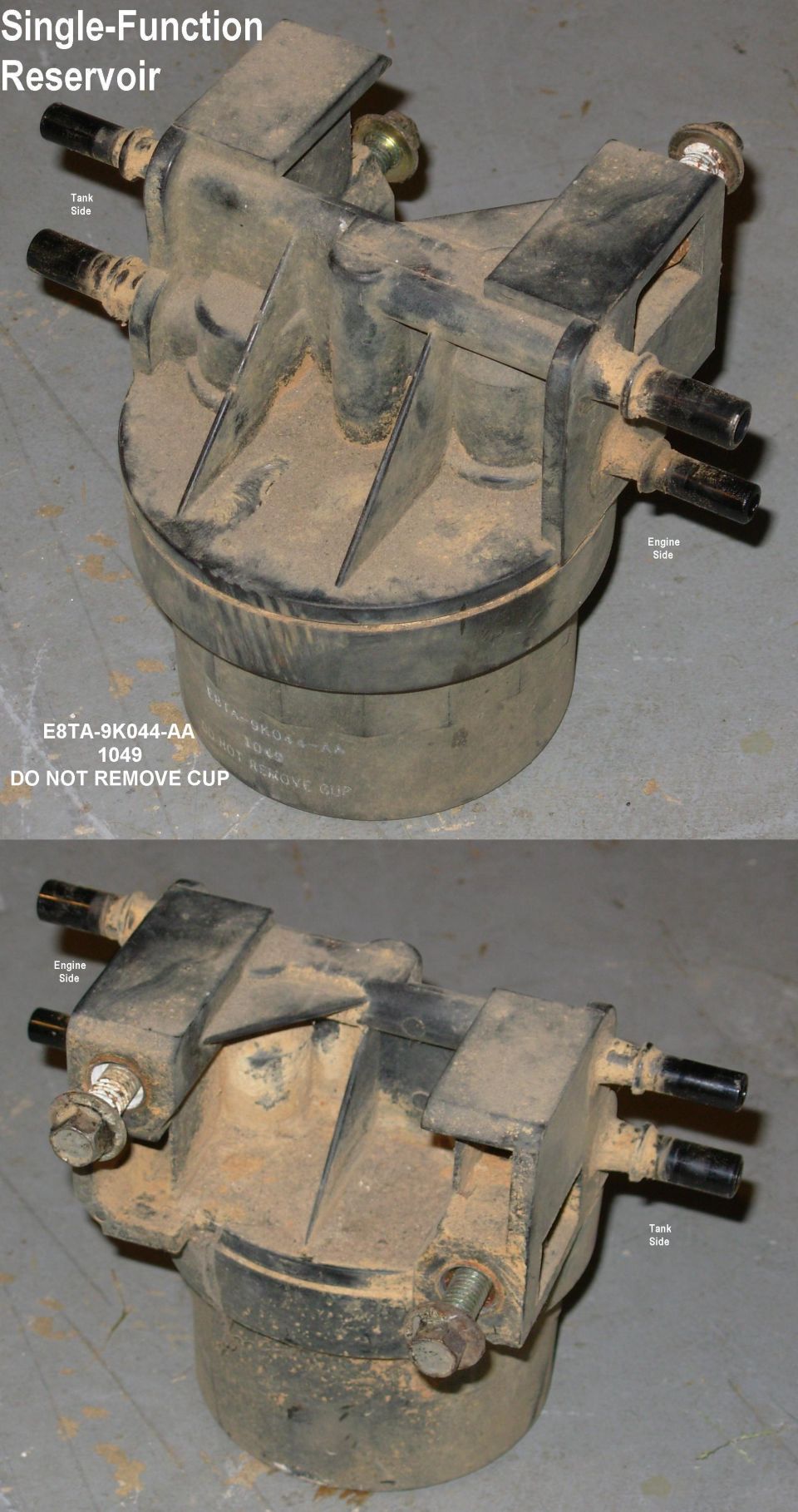

'88 Single-Function Reservoir
Used on '88-89 Broncos & F-series/E-series/Rangers/others with single tank dual-pump EFI. In this version, the only moving part is the tank-side inlet check valve. The return ports flow freely and are NOT connected to the reservoir. The engine-side supply port is open to the reservoir.
To test it, unplug the frame fuel pump, disconnect the engine-side supply (large) line, and cycle the key. If fuel flows out of the reservoir nipple, the reservoir is working normally. If not, disconnect the tank-side supply (large) line, and cycle the key. If fuel flows out of the line, the reservoir check valve is probably stuck, or its internal filter is clogged.
A reservoir marked "DO NOT REMOVE CUP" does not contain a filter. For a replacement O-ring for the cup, buy a Wix 33268, NAPA 3268, Fram CG3862, Purolator F50126, CarQuest 86268,or equivalent filter.
To permanently eliminate the reservoir, use
these Dorman fuel tubes.
