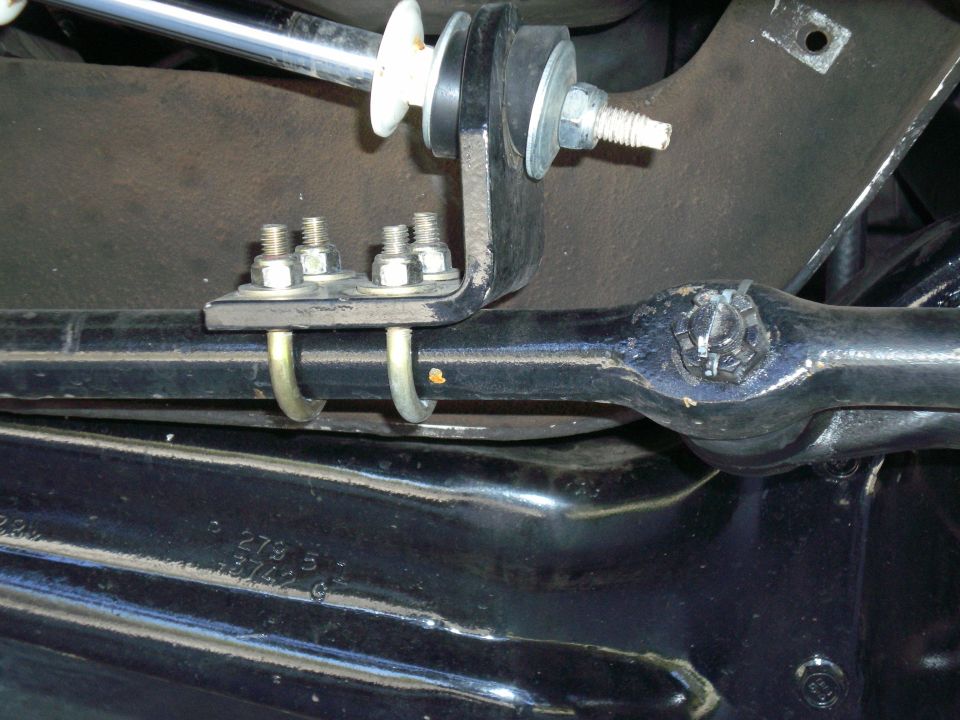

steering-stabilizer-install-012.jpg With the wheels turned to the far right, the piston should be about 1" to 1 1/2" from full compression. Note where u-bolts attach on the drag link.
steering-stabilizer-install-012.jpg | Hits: 2499 | Posted on: 9/30/08 | View original size (1.82 MB)

With the wheels turned to the far right, the piston should be about 1" to 1 1/2" from full compression. Note where u-bolts attach on the drag link.
