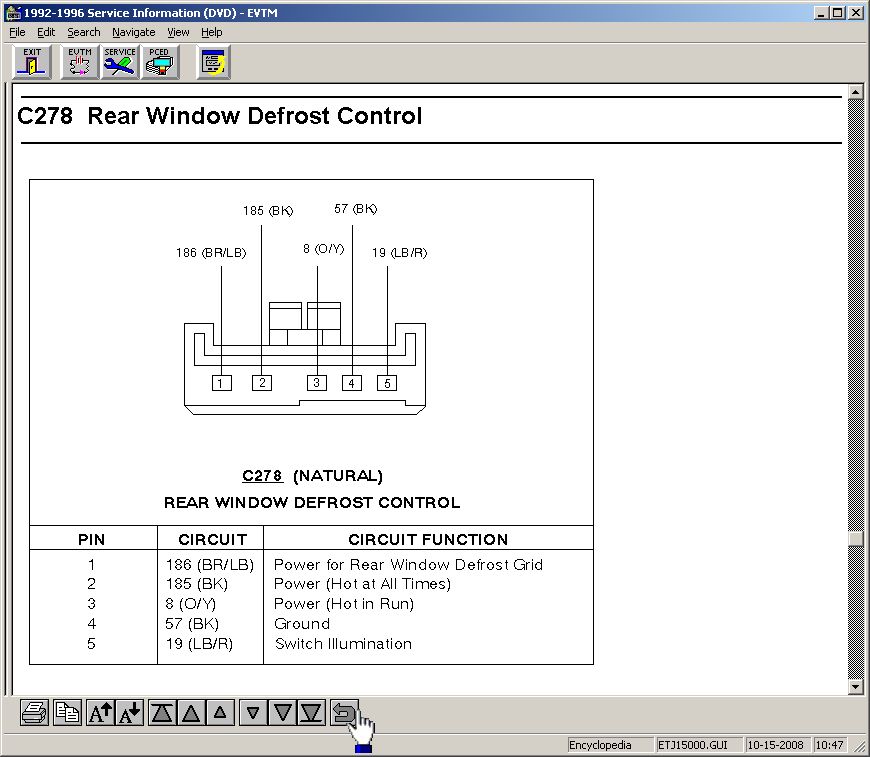

Pins 2 & 3 are the suspect terminals. After testing with a voltmeter or 12V test light with the key OFF and in RUN, it is found that pin 3 is never hot.
To trace that circuit, hit ESCAPE or click the back button 2x to return to the defroster cell.
|
