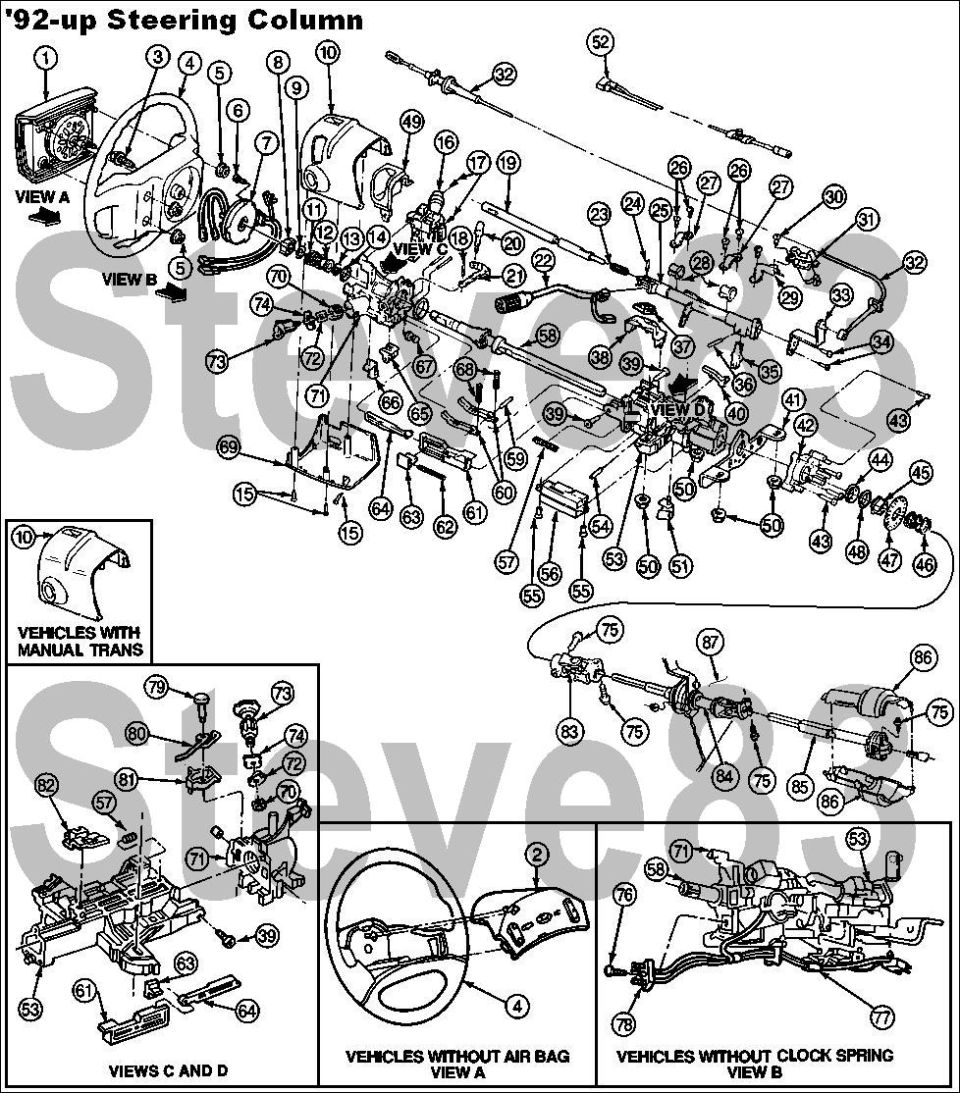

'92-up Steering Column exploded
IF THE IMAGE IS TOO SMALL, click it.

Items #19 (F7DZ7361A, F7DZ7R264AA) & 25 (1F1Z7212AA or F3TZ7212A) are known to break, and Ford offers upgraded versions. Dorman 905100
Item #28 (F3TZ7L278A) is known to wear; #26 & 34 are known to get loose.
Item #64 has a roll pin that should engage item #61 (FODZ3E715A), but it's known to slide out in some columns resulting in unpredictable ignition switch behavior.



For more info, see this page:
http://www.p71interceptor.com/steering/column/disassembled/pictures

1 Driver Side Air Bag Module 043B13
2 Steering Wheel Pad Horn Switch 13A80
3 Steering Wheel Bolt N804385-S100
4 Steering Wheel 3600
5 Air Bag Module Retaining Nuts 621903 (N805572-S36)
6 Screw, Clock Spring 390345-S36
7 Air Bag Sliding Contact (Clock Spring) 14A664
8 Turn Indicator Cancel Cam F2TZ-13318-A
9 Bearing Retainer, Upper 3C610
10 Steering Column Upper Shroud 3513
11 Steering Column Upper Bearing Spring 3520
12 Steering Column Bearing Sleeve 3518
13 Steering Column Bearing Tolerance Ring 3L539
14 Steering Column Bearing 3517
15 Shroud Retaining Screws 55929-S2 (4 used)
16 Multi-Function Switch (MFS) 13K359
17 Screw, MFS 390345-S36
18 Steering Column Lock Actuator Lever Pin N805857
19 Column Shift Selector Lever Plunger 7361 (Automatic Only) (F7DZ7R264AA)
20 Tilt Wheel Handle and Shank 3F609
21 Steering Column Release Lever 3D544
22 Gearshift Lever 7210 (Automatic Only) may include TCS & TCIL (Electronic Automatic Only)
-- TCS/TCIL (aka O/D LED/Cancel Switch) F58Z-7G550-A (Dorman 49299; Airtex/Wells 1S8995)
-- Steering Column Shifter Opening Weather Seal 3530 (Automatic Only, Not Available)
23 Gearshift Selector Tube Spring 7379 (Automatic Only)
24 Gearshift Lever Pin 7G357 (Automatic Only)
25 Transmission Column Shift Selector Tube 1F1Z7212AA (Automatic Only)
26 Screw, Shift Tube Clamp N806584 (Automatic Only)
27 Gearshift Tube Clamp 7E400 (Automatic Only)
28 Gearshift Lever Socket Bushing F3TZ7L278A (Automatic Only) (pkg of 2)
29 Transmission Shift Selector Position Insert 7A216 (Automatic Only)
30 Screw, Actuator N806584 (Automatic Only)
31 Shift Lock Actuator 3Z719 (Automatic Only)
32 Shift Cable and Bracket 7E395 (Automatic Only)
33 Transmission Selector Lever Arm and Support 7302 (Automatic Only)
34 Screws, Arm N806584 (Automatic Only)
35 Gearshift Lever Interlock Pawl (Automatic Only)
36 Interlock Pawl Pin 7W441 (Automatic Only)
37 Transmission Control Selector Lever Spring Clip 7C464 (Automatic Only)
38 Wiring Shield 14A099 (Electronic Automatic Only)
39 Pivot Bolts N806582
40 Steering Column Lock Pawl 3E691
41 Steering Column Instrument Panel Bracket 3676
42 Steering Column Lower Bearing Retainer 3D681
43 Screws, Retainer N806583-S36
44 Steering Column Bearing Sleeve 3518
45 Steering Column Bearing Tolerance Ring 3L539
46 Steering Column Lower Bearing Spring 3520
47 Steering Angle Sensor Control Ring 3C131
48 Steering Column Lower Bearing 3517
49 Lower Bearing Housing Retaining Screws N806583-S36
50 Lower Column Mounting Nuts N806423 (4 used)
51 Wiring Harness Retainer 14A163
52 Parking Brake Release Vacuum Hose Extension 2B654
53 Steering Actuator Housing 3F723
54 Steering Column Lock Lever Pin 3B663
55 Screw, Switch (Tamper Torx Head) N806584-S36
56 Ignition Switch 11572
57 Steering Column Position Spring 3D655
58 Steering Shaft Assembly 3524
59 Steering Column Lock N805856
60 Steering Column Lock Lever 3D653
61 Steering Column Lock Lever Lower Actuator 3E715
62 Steering Column Lock Spring 3E696
63 Steering Column Lock Pawl 3E691
64 Steering Column Lock Lever Upper Actuator 3E723 (with roll pin, not shown)
65 Steering Column Lock Cam 3E695
66 Wiring Harness Retainer 14A163
67 Steering Column Tilt Flange Bumper 3D656
68 Steering Column Position Lock Spring 3B768
69 Steering Column Lower Shroud 3530
70 Steering Column Lock Gear 3E717
71 Steering Column Lock Cylinder Housing 3511
72 Steering Column Lock Housing Bearing 3E700
73 Ignition Switch Lock Cylinder 11582
74 Bearing Retainer 3C610
75 Bolt, Shaft N803942-S100 (4 used)
76 Screw, Brush 390345-S2
77 Wiring Harness Retainer 14A163
78 Speed Control Brush 9C899
79 Steering Column Lock Actuator Lever Pin 3F530
80 Key Release Lever Spring 3F532
81 Steering Column Key Release Lever 3F527
82 Steering Column Lock Actuator Cover 3E745
83 U-Joint 3N725
84 Lower Steering Column Shaft Extension Assy. 3B676
85 Steering Column Gear Input Shaft & Coupling 3A525
86 Steering Shaft U-Joint Shield 3F540 (2 used)
87 Firewall

See other diagrams in this album for disassembly. See this for shifter adjustment instructions.



See this for ignition lock cylinder:


See this for ignition switch testing:


Non-airbag column without clock spring:


Shifter bushings:


Interlock:
