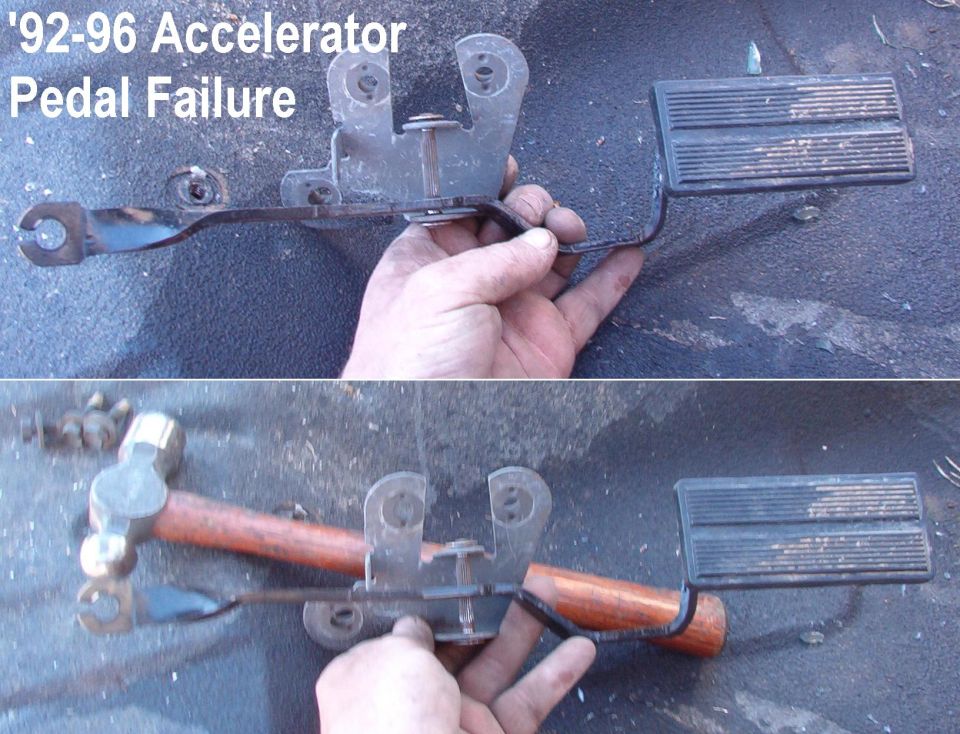

acceleratorpedal.jpg '92-96 Accelerator Pedal Failure

The pedal arm is simply pressed onto the splines of the shaft, and it can slide sideways, becoming loose & noisy.  To fix it, lay the pedal arm across the jaws of a vise with the pedal mounting bracket free between the jaws.  Then hammer the pivot shaft down thru the pedal arm like a nail thru a board.  If the pedal is still loose, use a blunt drift to damage the splines, then drive the pedal onto the damaged area, & damage the splines on the other side to lock it in.
acceleratorpedal.jpg | Hits: 3826 | Posted on: 3/22/09 | View original size (330.63 KB)

'92-96 Accelerator Pedal Failure

The pedal arm is simply pressed onto the splines of the shaft, and it can slide sideways, becoming loose & noisy. To fix it, lay the pedal arm across the jaws of a vise with the pedal mounting bracket free between the jaws. Then hammer the pivot shaft down thru the pedal arm like a nail thru a board. If the pedal is still loose, use a blunt drift to damage the splines, then drive the pedal onto the damaged area, & damage the splines on the other side to lock it in.
