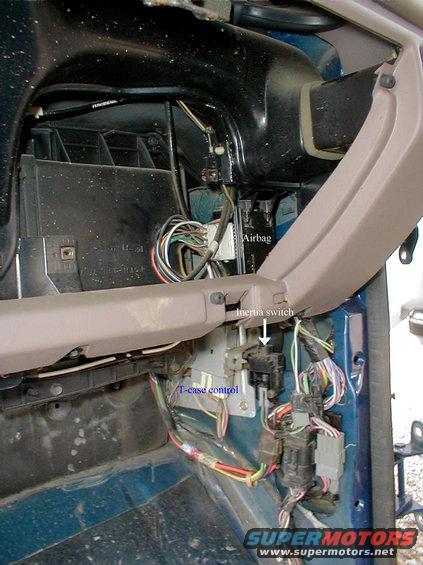

right-kick-modules.jpg ERROR ! ! ! ! ! ! ! ! ! !

The module I MISlabelled as "Airbag" is actually the Wiper Control Module (WCM).  The Airbag Diagnostic Module (ADM) is light blue, wrapped in black foam, above the gas pedal.
right-kick-modules.jpg | Hits: 16976 | Posted on: 7/11/03 | View original size (241.64 KB)

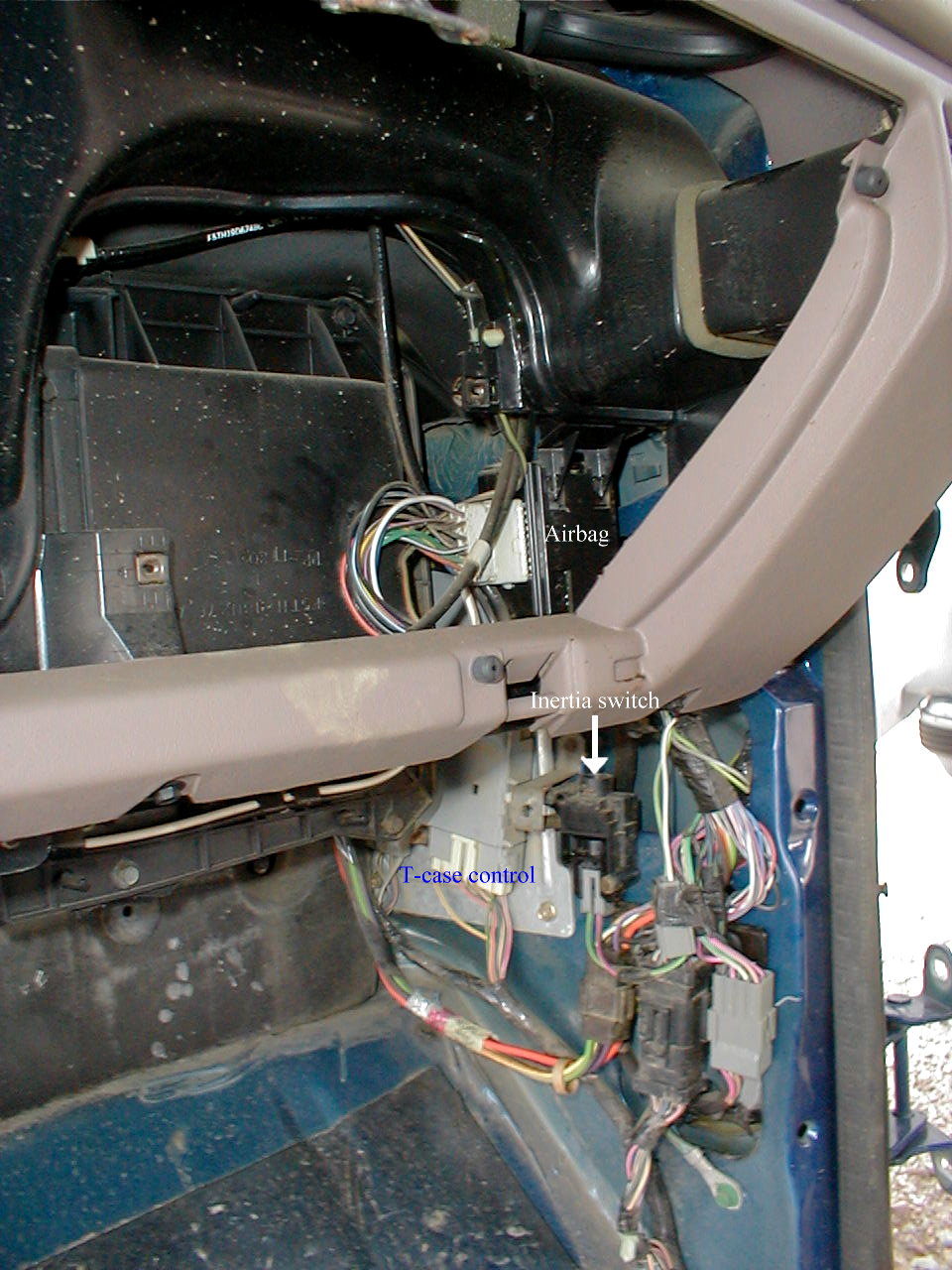

ERROR ! ! ! ! ! ! ! ! ! !

The module I MISlabelled as "Airbag" is actually the Wiper Control Module (WCM). The Airbag Diagnostic Module (ADM) is light blue, wrapped in black foam, above the gas pedal.
