module-1.jpg Reservoir Removal

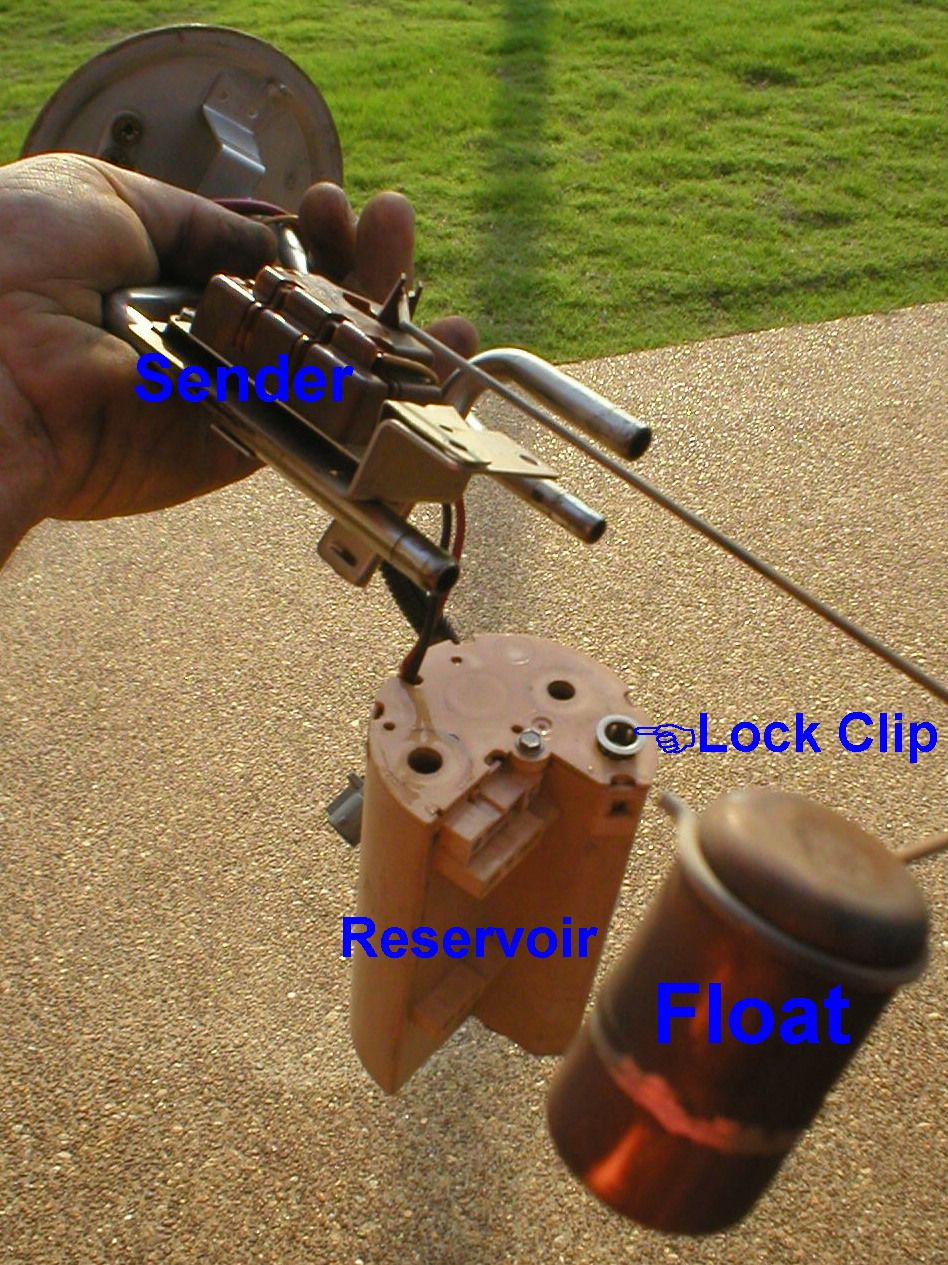

Remove the level sender upper mounting screw, press & hold the lock clip down, then lift the tube assembly from the reservoir.

The reservoir (which contains the pump, the return valve, & the pickup siphon) is interchangeable between all '90-96 rear gasoline tanks.  The pump (not visible inside the reservoir) is the same for all '90-96 gas trucks & tanks (maybe even diesel).  The tube & plate assembly in my hand is specific to '90-96 Broncos, and its pigtail connector is specific to '94-96.  The sender is compatible with all '87-97 gasoline trucks; the arm fits '87-96 Broncos; the float fits virtually all truck rear tanks, and some front tanks.  The wiring unplugs from the tank plate, and from the motor.
