tsb88313fuelpressspecs.jpg TSB 88-03-13 Fuel Pressure Specs IF THE IMAGE IS TOO SMALL, click it. Publication Date: FEBRUARY 2, 1988 FORD: 1988 ESCORT/EXP, MUSTANG, TEMPO, THUNDERBIRD, TAURUS, CROWN VICTORIA LINCOLN-MERCURY: 1988 TOPAZ, COUGAR, SABLE, GRAND MARQUIS, MARK VII, CONTINENTAL, LINCOLN TOWN CAR LIGHT TRUCK: 1988 ALL LIGHT TRUCK LINES ISSUE: The fuel pressure specification ranges for some engine applications are incorrect as published in the 1988 Engine/Emission Diagnosis Manual, Pinpoint Test "H", Section 19, Page 130. ACTION: If service is required, use the fuel pressure specifications from the chart. OTHER APPLICABLE ARTICLES: NONE WARRANTY STATUS: INFORMATION ONLY For other TSBs, check [url=http://www.revbase.com/BBBMotor/]here[/url]. [url=http://www.supermotors.net/registry/media/283795][img]http://www.supermotors.net/getfile/283795/thumbnail/fpr.jpg[/img][/url] To trigger the FP relay on pre-'96 EFIs, see the bottom of this diagram: [url=http://www.supermotors.net/registry/media/283459][img]http://www.supermotors.net/getfile/283459/thumbnail/fdm.jpg[/img][/url] To connect the gauge on a V8, see these: [url=http://www.supermotors.net/registry/media/148980][img]http://www.supermotors.net/getfile/148980/thumbnail/5.8l-dist.jpg[/img][/url] . [url=http://www.supermotors.net/registry/media/825934][img]http://www.supermotors.net/getfile/825934/thumbnail/fuelpressuregauge.jpg[/img][/url]
tsb88313fuelpressspecs.jpg | Hits: 13376 | Posted on: 4/19/09 | View original size (200.36 KB)

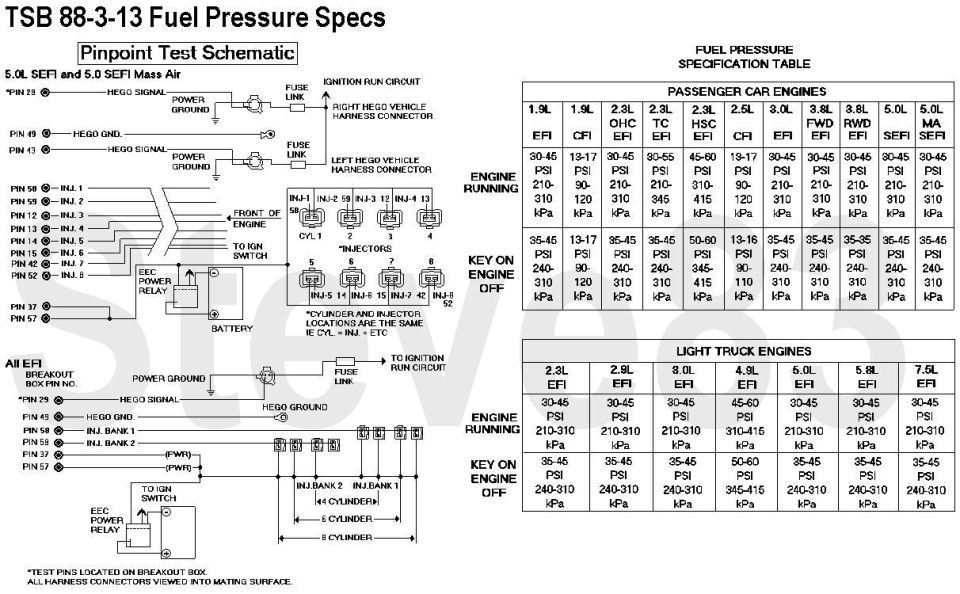

TSB 88-03-13 Fuel Pressure Specs
IF THE IMAGE IS TOO SMALL, click it.

Publication Date: FEBRUARY 2, 1988

FORD: 1988 ESCORT/EXP, MUSTANG, TEMPO, THUNDERBIRD, TAURUS, CROWN VICTORIA
LINCOLN-MERCURY: 1988 TOPAZ, COUGAR, SABLE, GRAND MARQUIS, MARK VII, CONTINENTAL, LINCOLN TOWN CAR
LIGHT TRUCK: 1988 ALL LIGHT TRUCK LINES

ISSUE: The fuel pressure specification ranges for some engine applications are incorrect as published in the 1988 Engine/Emission Diagnosis Manual, Pinpoint Test "H", Section 19, Page 130.

ACTION: If service is required, use the fuel pressure specifications from the chart.

OTHER APPLICABLE ARTICLES: NONE
WARRANTY STATUS: INFORMATION ONLY

For other TSBs, check here.



To trigger the FP relay on pre-'96 EFIs, see the bottom of this diagram:


To connect the gauge on a V8, see these:
.
