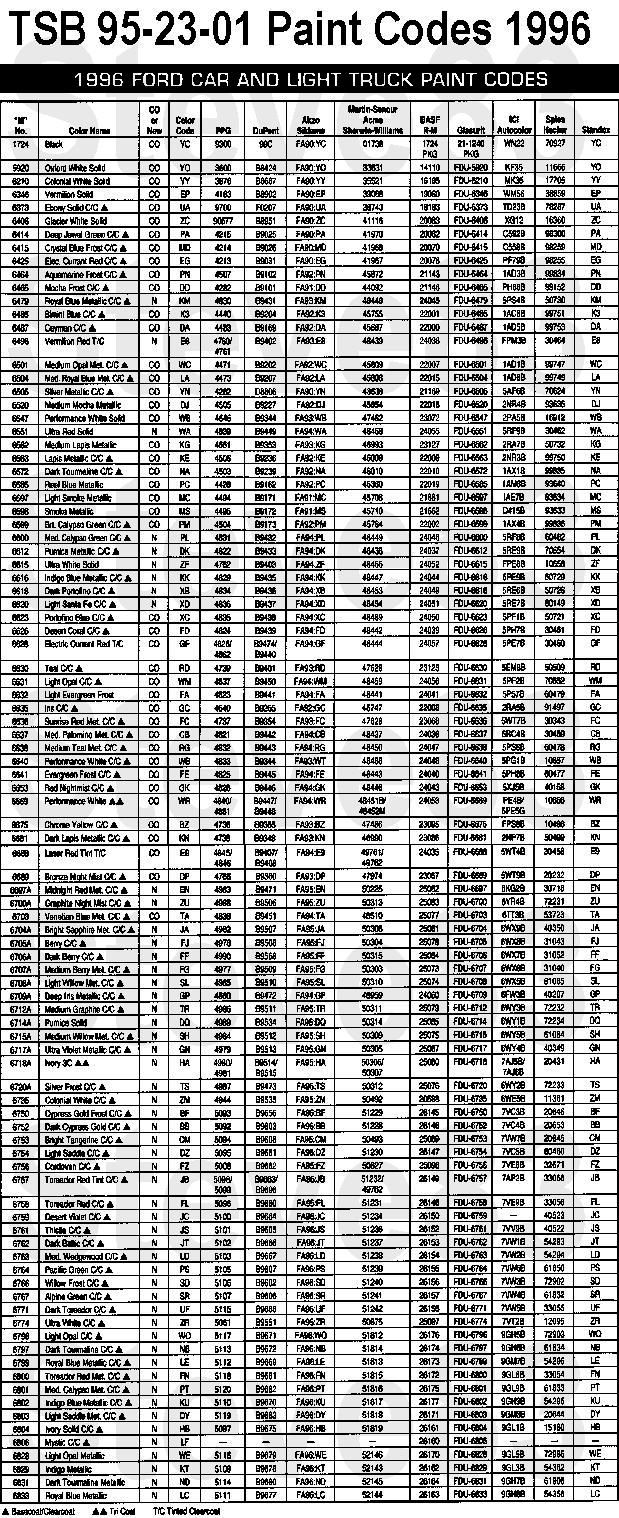

TSB 95-23-01 Paint Codes for 1996
IF THE IMAGE IS TOO SMALL, click it.

Publication Date: NOVEMBER 20, 1995

FORD: 1996 ASPIRE, CONTOUR, CROWN VICTORIA, ESCORT, MUSTANG, PROBE, TAURUS, THUNDERBIRD
LINCOLN-MERCURY: 1996 CONTINENTAL, COUGAR, GRAND MARQUIS, MARK VIII, MYSTIQUE, SABLE, TOWN CAR, TRACER
LIGHT TRUCK: 1996 AEROSTAR, BRONCO, ECONOLINE, EXPLORER, F SUPER DUTY, F-150-350 SERIES, RANGER, VILLAGER, WINDSTAR
MEDIUM/HEAVY TRUCK: 1996 CARGO SERIES, F & B SERIES, L SERIES

ISSUE: The following 1996 Ford and Lincoln-Mercury color charts (Figures 1 through 4) provide all of the supplier paint code numbers for the Ford two-digit paint codes listed on the Vehicle Certification Label.

ACTION: Paint should be available in either enamel or urethane from the manufacturers. To get the color match, use of either "Factory Pack" or "Intermix" is acceptable.

OTHER APPLICABLE ARTICLES: 92-20-01, 93-24-04
SUPERSEDES: 95-07-02


WARRANTY STATUS: INFORMATION ONLY

'96 EB Bronco tan is DZ Light Saddle BC/CC

For other TSBs, check here.
_____________________________________________________________
TSB 95-07-02 Color Chart Cross-Reference 1995
"M" No. Color Nam C/O Or New Color Code PPG Dupont Sikkens Martin-Senour/Acme/Sherwin-Williams Basf R-M Glasruit ICI Spies Hecker Standox
1724 Black CO YC 9300 99C FA90:YC 01738 1724 PKG 21-1240 PKG WN22 70927 YC
5920 Oxford White Solid CO YO 3600 B8424 FA90:YO 33631 16185 FD-5920 KF35 11666 YO
6210 Colonial White Solid CO YY 3876 B8687 FA90:YY 35521 16185 FD-6210 MK35 17705 YY
6346 Vermilion Solid CO EP 4106 88902 FA90:EP 39068 19060 FD-6346 WM56 38859 EP
6373 Ebony Solid (BC/CC) CO UA 9700 F0207 FA90:UA 38743 18183 FD-6373 TD23B 78287 UA
6406 Glacier White Solid CO ZC 90677 B8951 FA90:ZC 41116 20083 FD-6406 XG12 16360 ZC
6414 Deep Jewel Green (BC/CC) CO PA 4215 89025 FA90: PA 41970 20082 FD-6414 C592B 98300 PA
6415 Crystal Blue Frost (BC/CC) CO MD 4214 B9026 FA90:MD 41968 20070 FD-6415 C558B 98259 MD
6425 Electric Currant Red (BC/CC) CO EG 4213 89031 FA90:EG 41967 20078 FD-6425 PF79B 98255 EG
6454 Medium Platinum (BC/CC) CO RC 4296 B9109 FA91:RC 44094 21162 FD-6454 C876B 99162 RC
6464 Aquamarine Frost (BC/CC) CO PN 4507 B9102 FA92: PN 45872 21143 FD-6464 1AD3B 99834 PN
6465 Mocha Frost (BC/CC) CO DD 4282 B9101 FD-6465 PH68B 99152 DD
6477 Dark Mocha Metallic CO DW 4442 B9226 FA92: DW 45855 22017 FD-6477 11AD2B 93636 DW
6479 Royal Blue Metallic (BC/CC) N KM 4830 B9431 FA93:KM 48448 24045 FD-6479 5PS4B 50730 KM
6485 Bimini Blue (BC/CC) CO K3 4440 89204 FA92:K3 45755 22001 FD-6485 1AC8B 99751 K3
6487 Cayman (BC/CC) CO DA 4483 B9169 FA92: DA 45687 22000 FD-6487 1AD5B 99753 DA
6496 Vermilion Red (Tinted CC) N E8 4760/4761 89402 FA93:E8 48439 24038 FD-6496 FPM3B 30464 E8
6500 Ultra Red Solid (BC/CC) CO WH 4441 B9206 FD-6500 1AC9B 37126 WH
6501 Medium Opal Met. (BC/CC) CO WC 4471 B9202 FA92:WC 45809 22007 FD-6501 1AD1B 99747 WC
6504 Med. Royal Blue Met. (BC/CC)CO LA 4473 B9207 FA92:LA 45808 22015 FD-6504 1AD6B 99749 LA
6505 Silver Metallic (BC/CC) CO YN 4262 D8806 FA90:YN 43638 21169 FD-6505 5AF6B 70624 YN
6520 Med. Mocha Metallic CO DJ 4505 B9227 FA92: DJ 45854 22016 FD-6520 2NR4B 93635 DJ
6547 Performance White Solid CO WB 4646 89344 FA93:WB 47462 23072 FD-6547 2PA5B 16912 WB
6551 Ultra Red Solid N WA 4839 B9449 FA94:WA 48458 24055 FD-6551 5RF9B 30462 WA
6555 Lt. Med. Aubergine (BC/CC) CO GD 4643 B9302 FA93:GD 46979 23073 FD-6555 2NP8B 91946 GD
6556 Dark Lapis Metallic CO KH 4652 89352 FA93:KH 46992 23085 FD-6556 5RGIB 91502 KH
6561 Bright Lapis Met. (BC/CC) CO KF 4644 89345 FA93:KF 46980 23076 FD-6561 2NP5B 91495 KF
6562 Medium Lapis Metallic CO KG 4651 B9353 FA93:KG 46993 23127 FD-6562 2RA7B 50732 KG
6563 Lapis Metallic (BC/CC) CO KE 4506 89236 FA92:KE 46009 22009 FD-6563 2NR3B 99750 KE
6572 Dark Tourmaline (BC/CC) CO NA 4503 B9239 FA92:NA 46010 22010 FD-6572 1AX1B 99835 NA
6585 Reef Blue Metallic CO PC 4428 B9162 FA92: PC 45360 22019 FD-6585 1AM8B 93640 PC
6597 Light Smoke Metallic CO MC 4494 89171 FA91:MC 45708 21661 FD-6597 1AE7B 93634 MC
6598 Smoke Metallic CO MS 4495 89172 FA91:MS 45710 21662 FD-6598 D415B 93633 MS
6599 Brt Calypso Green (BC/CC) CO PM 4504 B9173 FA92: PM 45764 22002 FD-6599 1AX4B 99836 PM
6600 Med. Calypso Green (BC/CC)N PL 4831 89432 FA94: PL 48449 24046 FD-6600 5RF8B 60482 PL
6612 Pumice Metallic (BC/CC) N DK 4822 89433 FA94: DK 48438 24037 FD-6612 5RE9B 70654 DK
6615 Ultra White Solid N ZF 4762 B9403 FA94:ZF 48455 24052 FD-6615 FPE8B 10658 ZF
6616 Indigo Blue Metallic (BC/CC) N KK 4829 89435 FA94:KK 48447 24044 FD-6616 5PE9B 50729 KK
6618 Dark Portofino (BC/CC) N XB 4834 89436 FA94:XB 48453 24049 FD-6618 5RE6B 50726 XB
6620 Light Santa Fe (BC/CC) N XD 4836 B9437 FD-6620 5RE7B 80149 XD
6623 Portofino Blue (BC/CC) CO XC 4835 89438 FA94:XC 48489 24050 FD-6623 5PF1B 50721 XC
6026 Desert Coral (BC/CC) CO FD 4824 29439 FA94:FD 48442 24039 FD-6626 5PH7B 30461 FD
6628 Electric Currant Red (Tinted CC)CO GF 4826/4862 B9474/B9440 FA94:GF 48444 24057 FD-6628 5PE7B 30460 GF
6630 Teal (BC/CC) CO RD 4739 89401 FA93:RD 47629 23123 FD-6630 5EM8B 50509 RD
6631 Light Opal (BC/CC) CO WM 4837 89450 FA94:WM 48459 24056 FD-6631 5PF2B 70652 WM
6632 Light Evergreen Frost CO FA 4823 B9441 FA94:FA 48441 24041 FD-6632 5P57B 60479 FA
6635 Iris (BC/CC) CO GC 4640 89265 FA92:GC 46747 22008 FD-6635 2RA5B 91497 GC
6636 Sunrise Red Metallic CO FC 4737 B9354 FA93:FC 47628 23068 FD-6636 5WT7B 30343 FC
6637 Med. Palomino Met. (BC/CC)CO CB 4821 89442 FA94:CB 48437 24036 FD-6637 5RC4B 30459 CB
6638 Medium Teal Met. (BC/CC) CO RG 4832 89443 FA94:RG 48450 24047 FD-6638 5PS6B 60478 RG
6640 Performance White (BC/CC) CO WB 4833 B9344 FA93:WT 48488 24048 FD-6640 5PG1B 10657 WB
6041 Evergreen Frost (BC/CC) CO FE 4825 89445 FA94:FE 48443 24040 FD-6641 5PH8B 60477 FE
6653 Red Nightmist (BC/CC) CO GK 4828 B9446 FA94:GK 48446 24043 FD-6653 5XJ5B 40158 GK
6669 Performance White (Tricoat) CO WR 4840/4881 89447/89448 FA94:WR 48451B/48452M 24053 FD-6669 PE48/5PE5G 10656 WR
6675 Chrome Yellow (BC/CC) CO BZ 4736 89355 FA93:BZ 47486 23095 FD-6675 FPS8B 10496 BZ
6681 Dark Lapis Metallic (BC/CC) CO KN 4738 89348 FA93:KN 46990 23086 FD-6681 2NP7B 50499 KN
6688 Laser Red Tint (Tinted CC) CO E9 4845/4846 89407/89408 FA93:E9 49761/49762 24035 FD-6688 5WT4B 30458 E9
6689 Bronze Night Mist (BC/CC) CO DP 4766 B9360 FA95: DP 47974 23067 FD-6689 5WT9B 20232 DP
6697A Midnight Red Met. (BC/CC) N EN 4983 89471 FA95:EN 50225 25082 FD-6697 6KG2B 30718 EN
6700A Graphite Night Mist (BC/CC) N ZU 4988 B9506 FA95:ZU 50313 25083 FD-6700 6YR48 72231 ZU
6703 Venetian Blue Met. (BC/CC) CO TA 4838 89451 FA94:TA 48510 25077 FD-6703 6TT3B 53723 TA
6704A Bright Sapphire Met (BC/CC) N JA 4982 89507 FA95:JA 50308 25081 FD-6704 6WX9B 40350 JA
6705A Berry (BC/CC) N FJ 4978 B9508 FA95:FJ 50304 25078 FD-6705 6WX8B 31043 FJ
6706A Dark Berry Met. (BC/CC) N FF 4990 B9558 FA95:FF 50315 25084 FD-6706 6WX7B 31052 FF
6707A Medium Berry Met. (BC/CC) N FG 4977 B9509 FA95:FG 50303 25073 FD-6707 6WX6B 31040 FG
6708A Light Willow Met. (BC/CC) N SL 4985 B9510 FA95:SL 50310 25074 FD-6708 6WX5B 61085 SL
6709A Deep Iris Metallic (BC/CC) N GP 4860 B9472 FA94:GP 48959 24060 FD-6709 6FW3B 40207 GP
6712A Medium Graphite (BC/CC) N TR 4986 B9511 FA95:TR 50311 25079 FD-6712 6WY3B 72232 TR
6714A Pumice Solid N DQ 4989 B9534 FA95: DQ 50314 25085 FD-6714 6WY1B 72234 DQ
6715A Medium Willow Met. (BC/CC)N SH 4984 B9512 FA95:SH 50309 25075 FD-6715 6WY5B 61084 SH
6717A Ultra Violet Metallic (BC/CC) N GN 4979 B9513 FA95:GN 50305 25087 FD-6717 6WY4B 40349 GN
6718A Ivory 3C (Tricoat) N HA 4980/4981 B9514/B9515 FA95:HA 50306/50307 25080 FD-6718 7AJ5B/7AJ6B 20431 HA
6720A Silver Frost (BC/CC) N TS 4987 B9473 FA95:TS 50312 25076 FD-6720 6WY2B 72233 TS
????? Dark Toreador Red (BC/CC) N JL,UF,JM 5115 ????? ??????? ????? ????? ??????? 7VW5B ????? JL
????? Colonial White (BC/CC) N ZM ???? ????? ??????? ????? ????? ??????? ?????? ????? ZM
