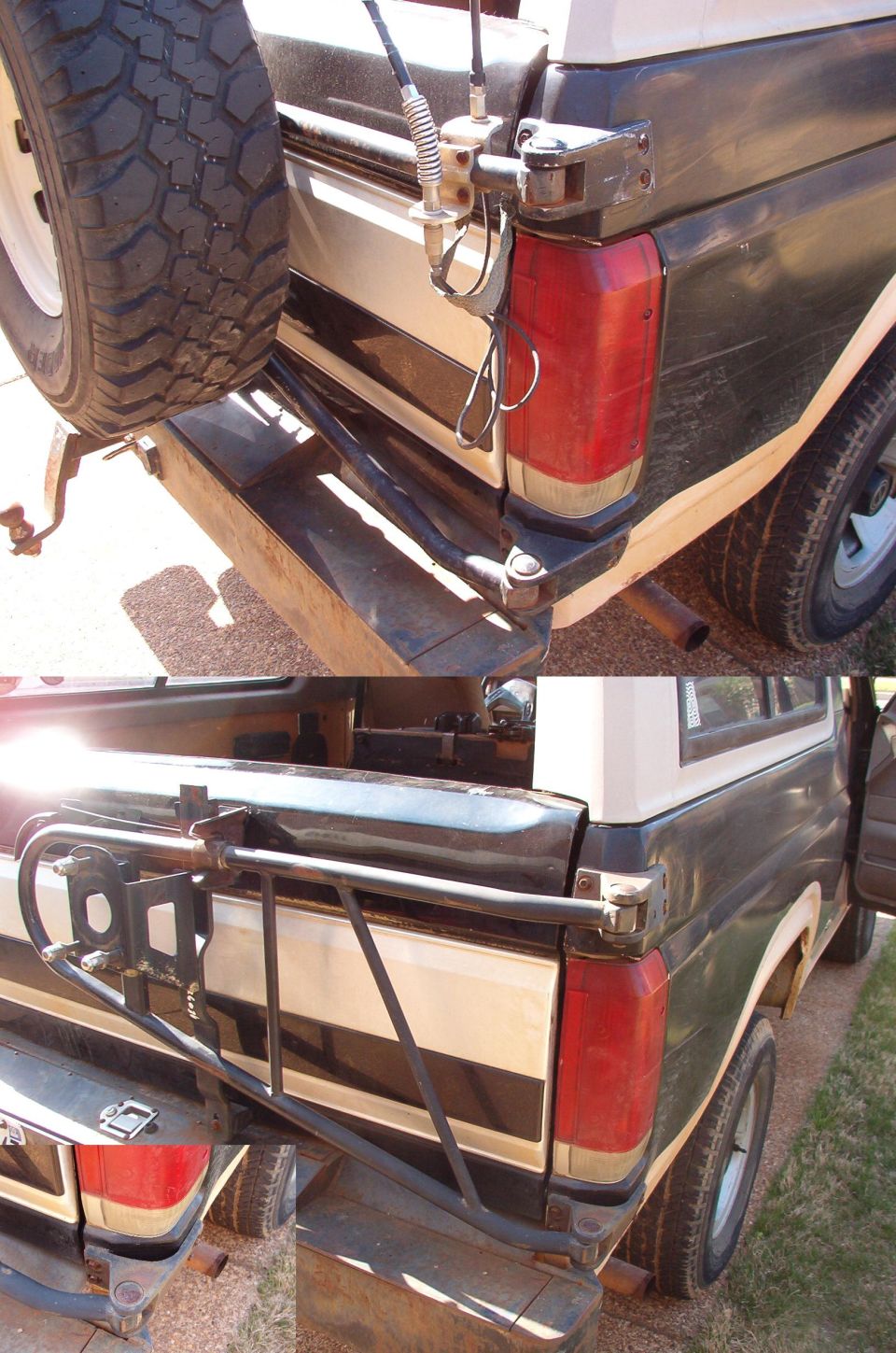

swingawayswap.jpg Someone suggested that the curved body brackets of Type 2 & 3 swingaways wouldn't fit an '80-86 body's squared corners.  So to make installing my 4-way lug wrench carrier easier, I swapped my spare Type 3 swingaway on.  No problems.  I could have swapped the swingaway frame onto my original squared body brackets, but I wanted to test this, and I might sandblast & powdercoat the old one.

[url=https://www.supermotors.net/registry/media/463906][img]https://www.supermotors.net/getfile/463906/thumbnail/swbrkts8086.jpg[/img][/url] . [url=https://www.supermotors.net/vehicles/registry/media/894887][img]https://www.supermotors.net/getfile/894887/thumbnail/swingawaysexploded.jpg[/img][/url]

To prevent the carrier buckling the quarter panel, add a tether & reinforcements:
[url=https://www.supermotors.net/vehicles/registry/media/767955][img]https://www.supermotors.net/getfile/767955/thumbnail/tether.jpg[/img][/url] . [url=https://www.supermotors.net/registry/media/75215][img]https://www.supermotors.net/getfile/75215/thumbnail/swingawaybrace1.jpg[/img][/url] . [url=https://www.supermotors.net/registry/media/75216][img]https://www.supermotors.net/getfile/75216/thumbnail/swingawaybrace2.jpg[/img][/url]
swingawayswap.jpg | Hits: 3056 | Posted on: 4/27/09 | View original size (562.41 KB)

Someone suggested that the curved body brackets of Type 2 & 3 swingaways wouldn't fit an '80-86 body's squared corners. So to make installing my 4-way lug wrench carrier easier, I swapped my spare Type 3 swingaway on. No problems. I could have swapped the swingaway frame onto my original squared body brackets, but I wanted to test this, and I might sandblast & powdercoat the old one.

.

To prevent the carrier buckling the quarter panel, add a tether & reinforcements:
. .
