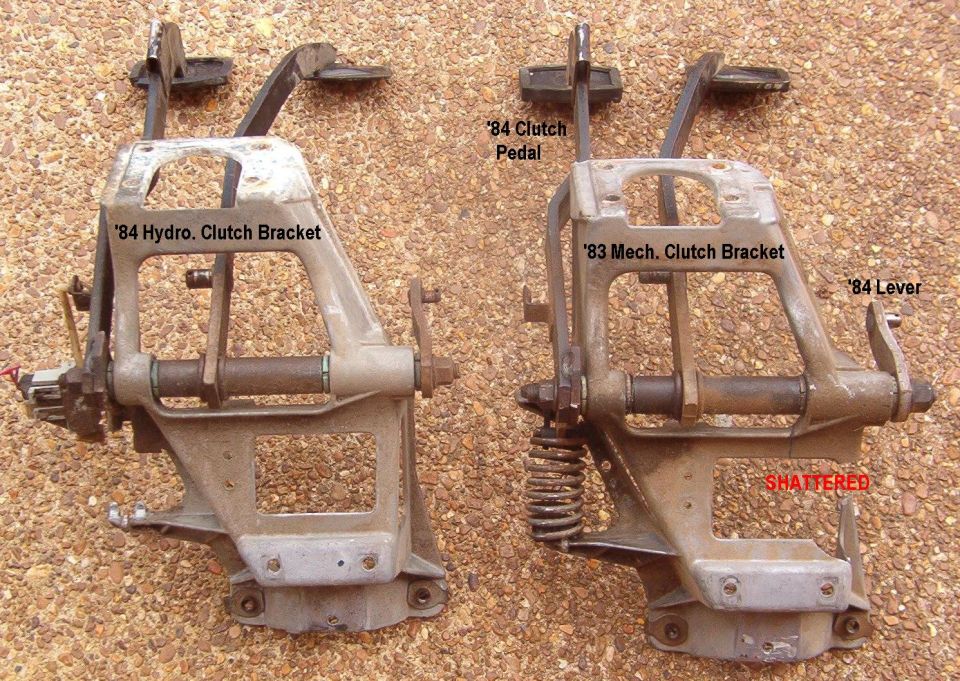

pedals4.jpg The same pedal bracket is used for mechanical & hydraulic clutches from '80-86, but the clutch pedal, shaft, lever, & switch changed in '84 for the hydraulic system.  The bracket & switch changed again in '87, and the bracket changed again in '92 to a cast Aluminum column & e-brake mount with a separate steel pedal bracket.

I'm transferring the switch, spring, & pedal pads onto the new pedals, and installing a new lever (since the splines can only be cut once).
pedals4.jpg | Hits: 3247 | Posted on: 8/7/09 | View original size (479.07 KB)

The same pedal bracket is used for mechanical & hydraulic clutches from '80-86, but the clutch pedal, shaft, lever, & switch changed in '84 for the hydraulic system. The bracket & switch changed again in '87, and the bracket changed again in '92 to a cast Aluminum column & e-brake mount with a separate steel pedal bracket.

I'm transferring the switch, spring, & pedal pads onto the new pedals, and installing a new lever (since the splines can only be cut once).
