9394cvgmqrkemodulepinouts.jpg | Hits: 2128 | Posted on: 10/29/09 | View Low-Res

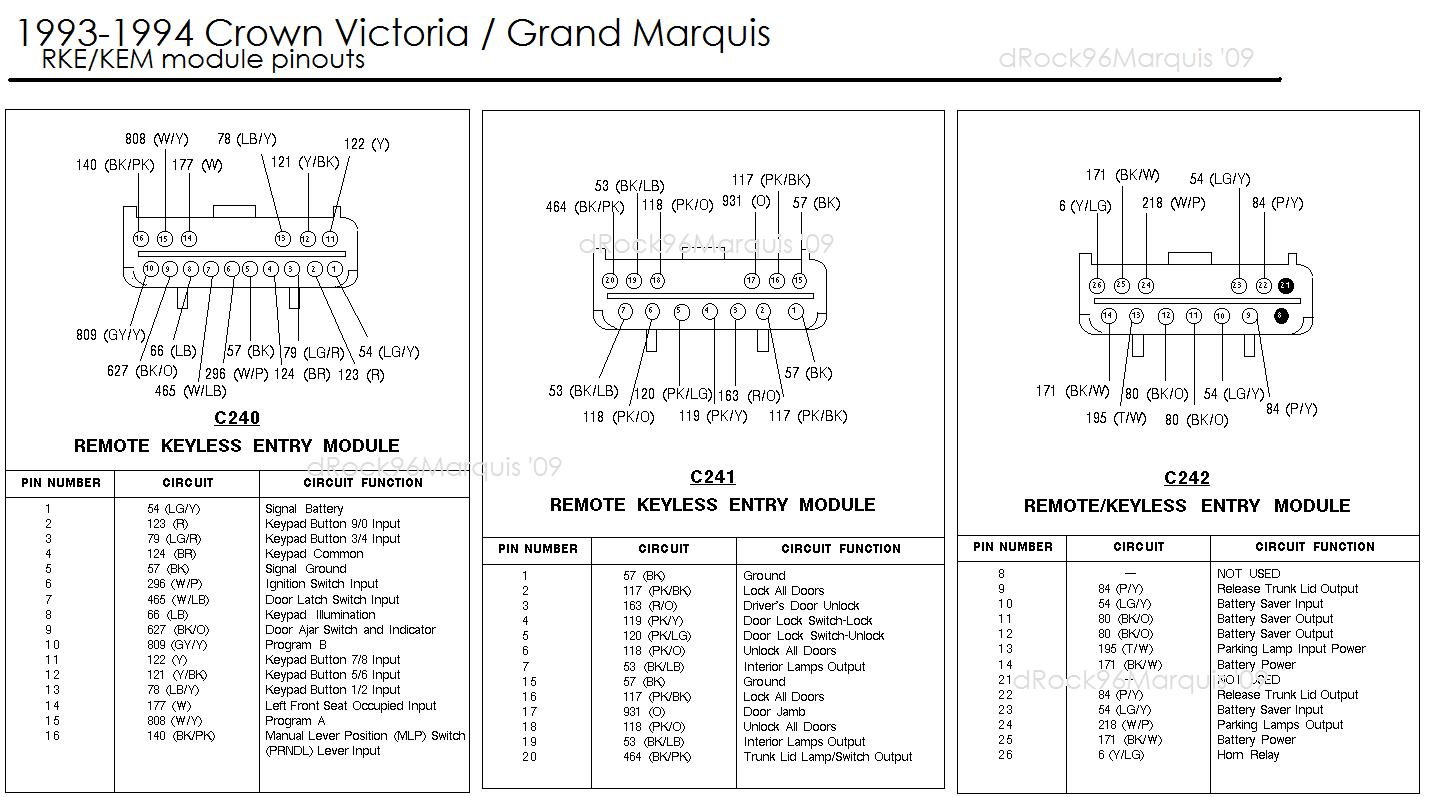

1993-1994 CV/GMQ RKE/KEM keyless entry pinouts
