Instrument cluster ('94-96) film circuit with tachometer
IF THE IMAGE IS TOO SMALL, click it.

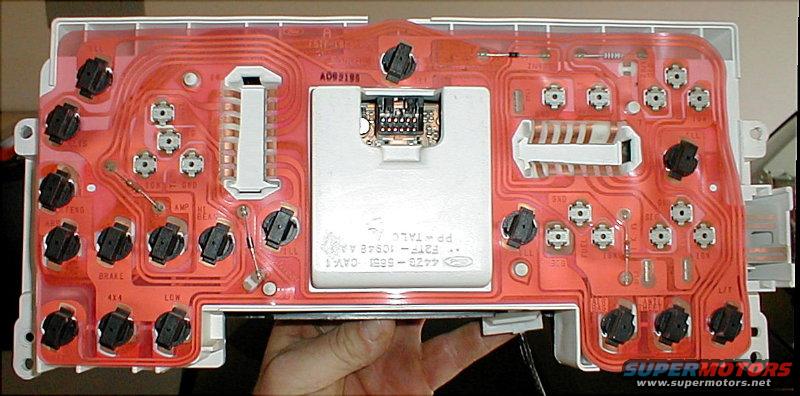

The recessed black connector in the middle is the PSOM. The resistor at the top R is for the oil gauge. The black component to its L is a diode.
|
