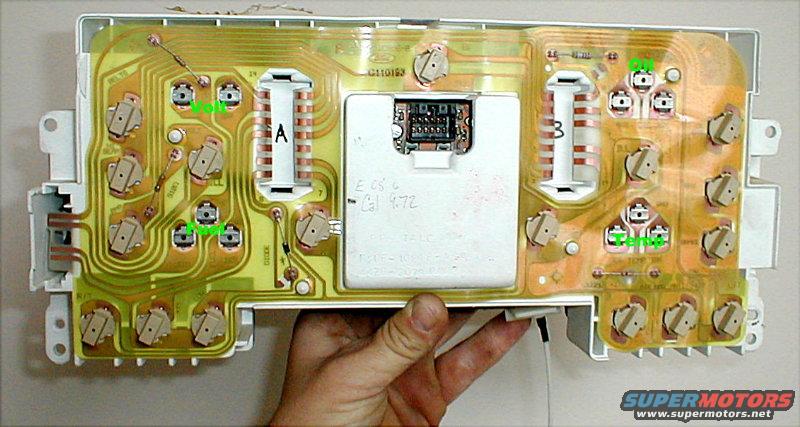

Instrument cluster ('92-96) film circuit without tachometer
IF THE IMAGE IS TOO SMALL, click it.
The recessed black connector in the middle is the PSOM. The resistor above connector B is for the oil gauge.
|
