'87-91 Low Fuel Light
IF THE IMAGE IS TOO SMALL, click it.

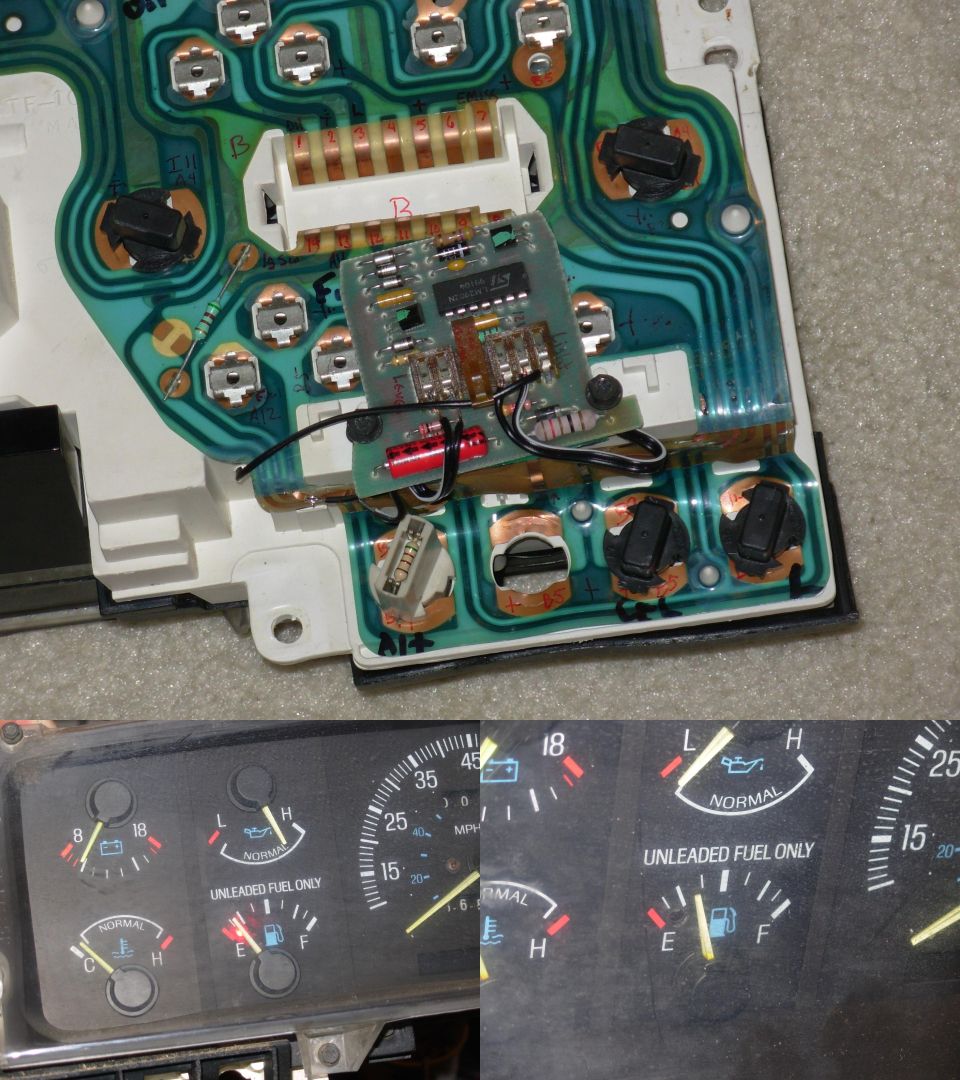

This is one way to add the anti-slosh module & an LED to a cluster without the module slot. I removed the EUL/IMS module and found its screws perfectly spaced to hold this one. I soldered a few wires onto the film circuit, drilled a hole for the LED, and connected it just like on the later cluster. The bosses on the white cluster housing hold the module barely above the gauge terminals, but I also added a layer of tape on the back of the module to prevent short circuits between it & the film circuit.
