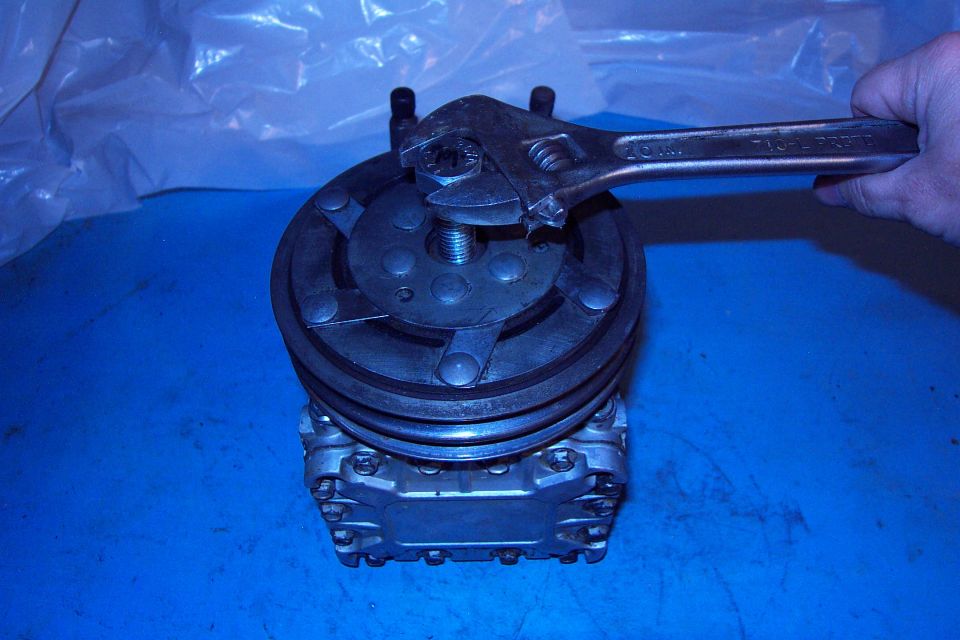

dcp_0331.jpg Removing Pulley & Clutch. After removing the center bolt, drive in a 5/8" - 11 bolt to pull the assembly off the shaft. (8/26/2003)
dcp_0331.jpg | Hits: 1733 | Posted on: 9/28/03 | View original size (293.61 KB)

Removing Pulley & Clutch.
After removing the center bolt, drive in a 5/8" - 11 bolt to pull the assembly off the shaft.
(8/26/2003)
