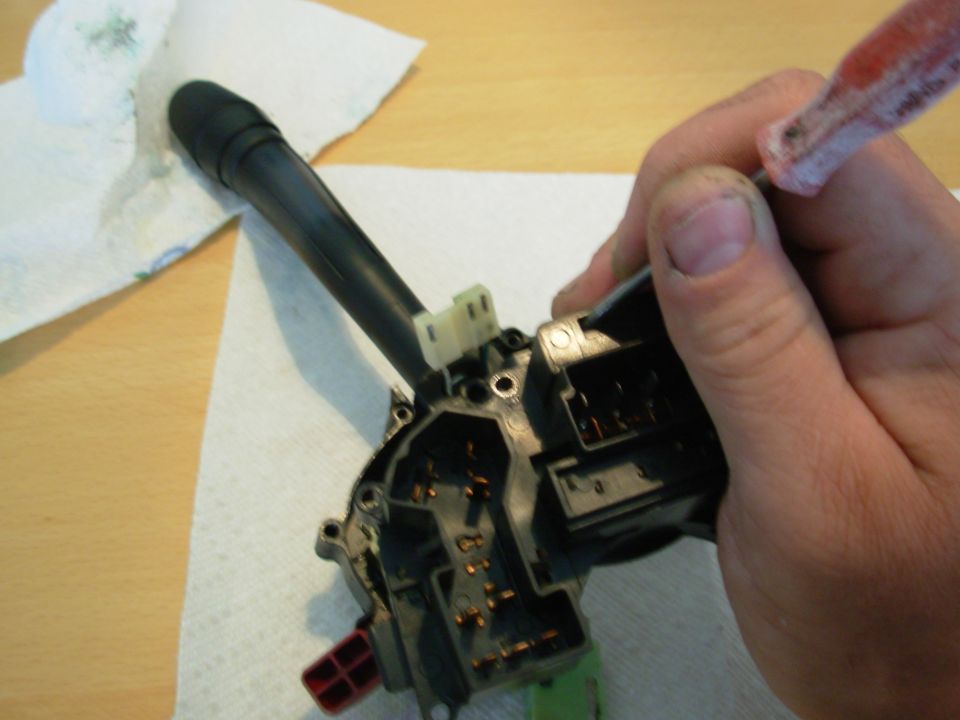

08wiperconn.jpg While splitting the case, release the catch on the wiper connector using a fine flat screwdriver or probe through this access hole.  It will still take some force to pull the front case up off the connector, and the lever MUST be held down against the rear case half.
08wiperconn.jpg | Hits: 2374 | Posted on: 5/15/11 | View original size (2.27 MB)

While splitting the case, release the catch on the wiper connector using a fine flat screwdriver or probe through this access hole. It will still take some force to pull the front case up off the connector, and the lever MUST be held down against the rear case half.
