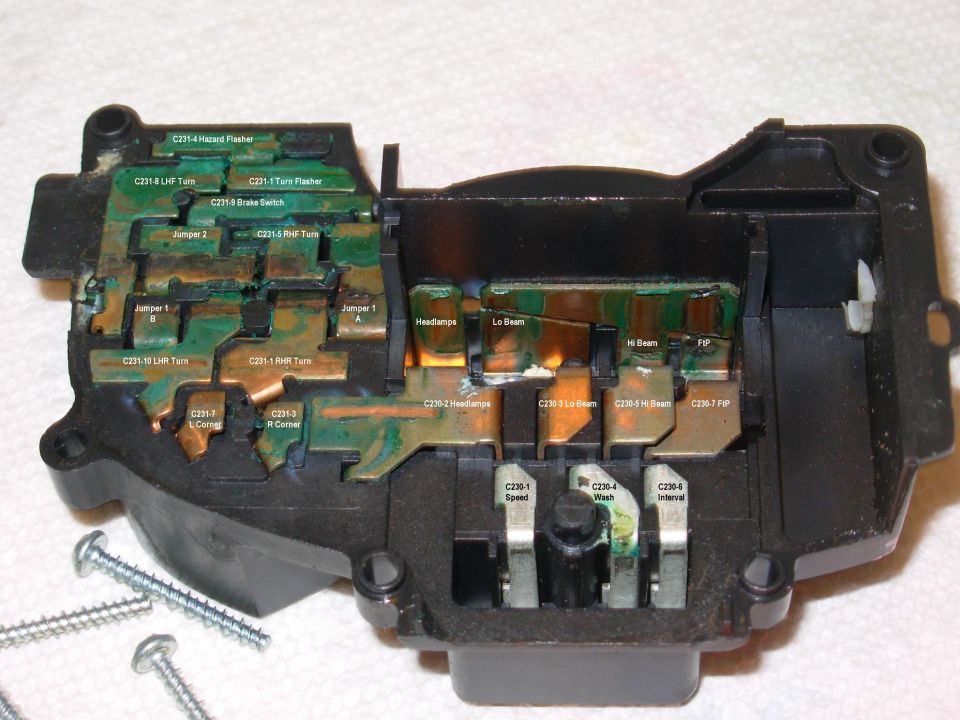

These are the functions of the contacts. If you can't read the text labels in the image, click it to supersize.
Normal (hazard & turns OFF, low beam):
- The Beam Select wiper on the headlight slider joins the Headlamp & Lo Beam contacts; the FtP wiper on the headlight slider rests on the Hi Beam contact.
- The J2 hazard wiper joins Jumper 2 to the Brake Switch contact.
- The Flasher wiper on the hazard slider joins the Turn Flasher contact to Jumper 1.
- The Cornering wiper on the turn slider rests on the Headlamps contact & the dead pad between the corner light contacts.
- The L wiper on the turn slider joins Jumper 2 to the LHR contact.
- The R wiper on the turn slider joins Jumper 2 to the RHR contact.
|
