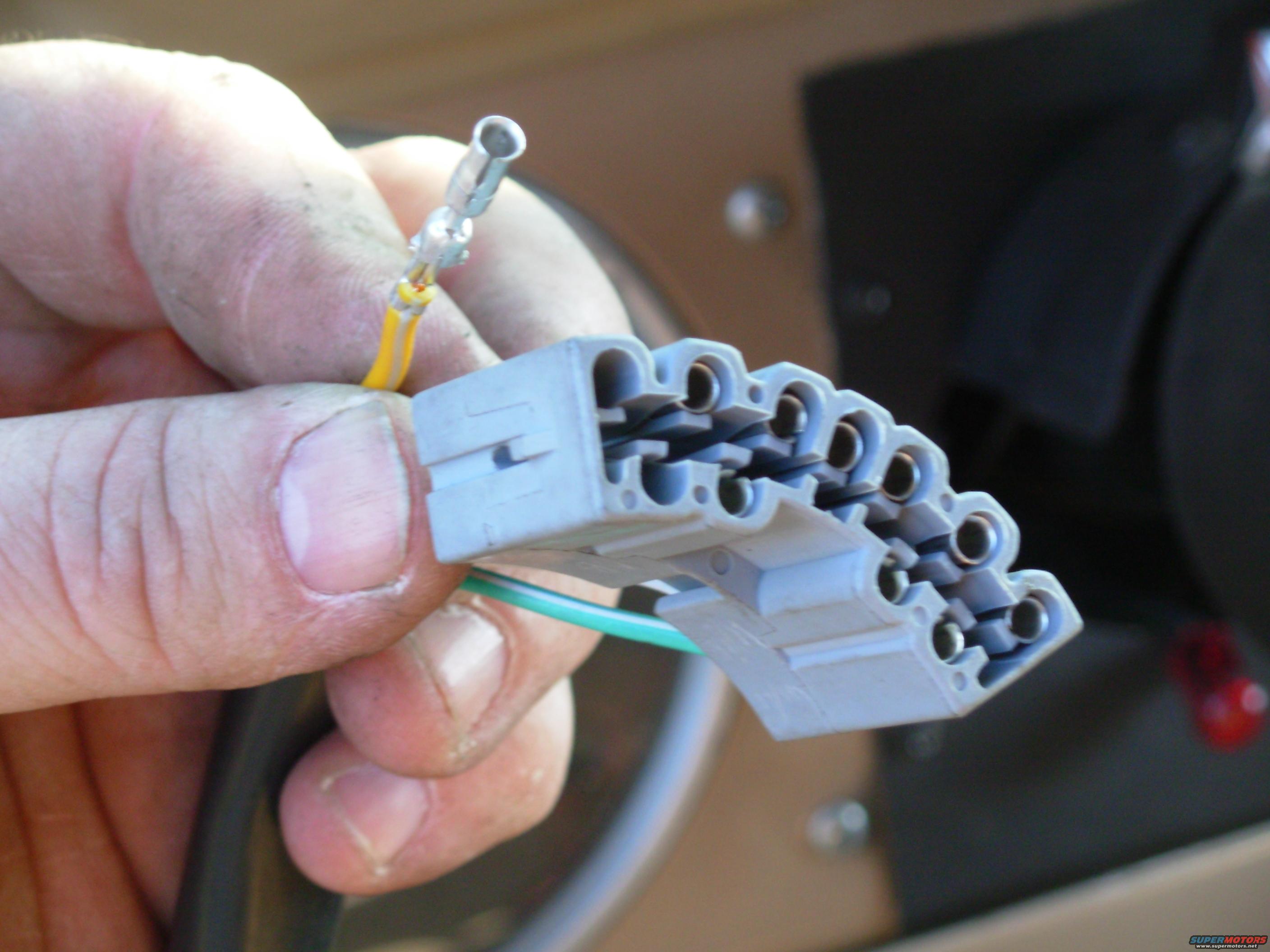

AFTER MARKING each terminal's wire colors on the connector shell, release them by gently prying each one's catch tab away from the terminal & pulling the wire out of the shell.
If you look closely at the original-(SUPER)size image, you can see that I've scratched the wire colors into the plastic shell.
|
