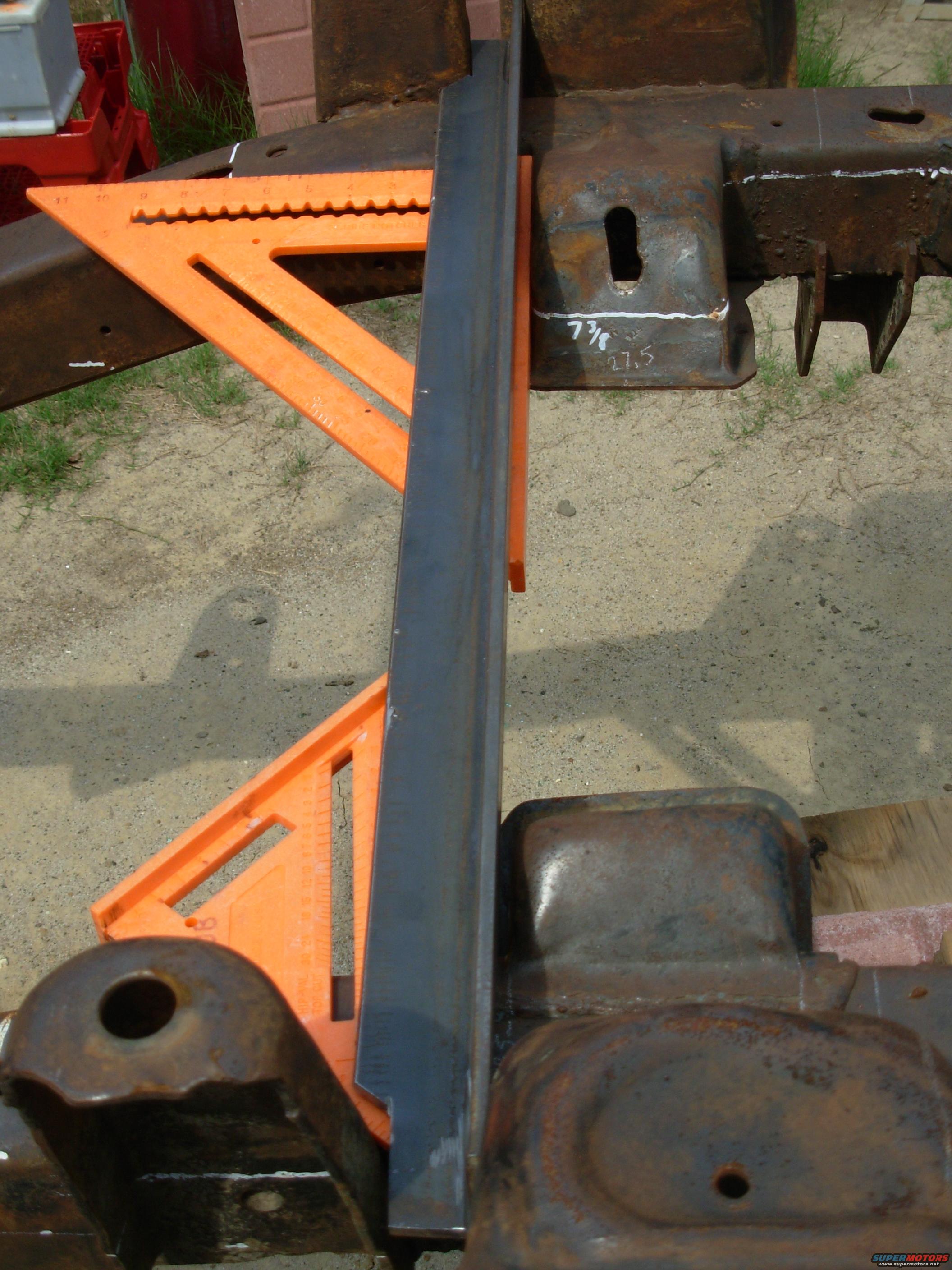

Engine Perch Location for V8

On this frame, the L perch is ~1/4" forward, and the R is ~1/8" from the rear faces of the spring towers.
