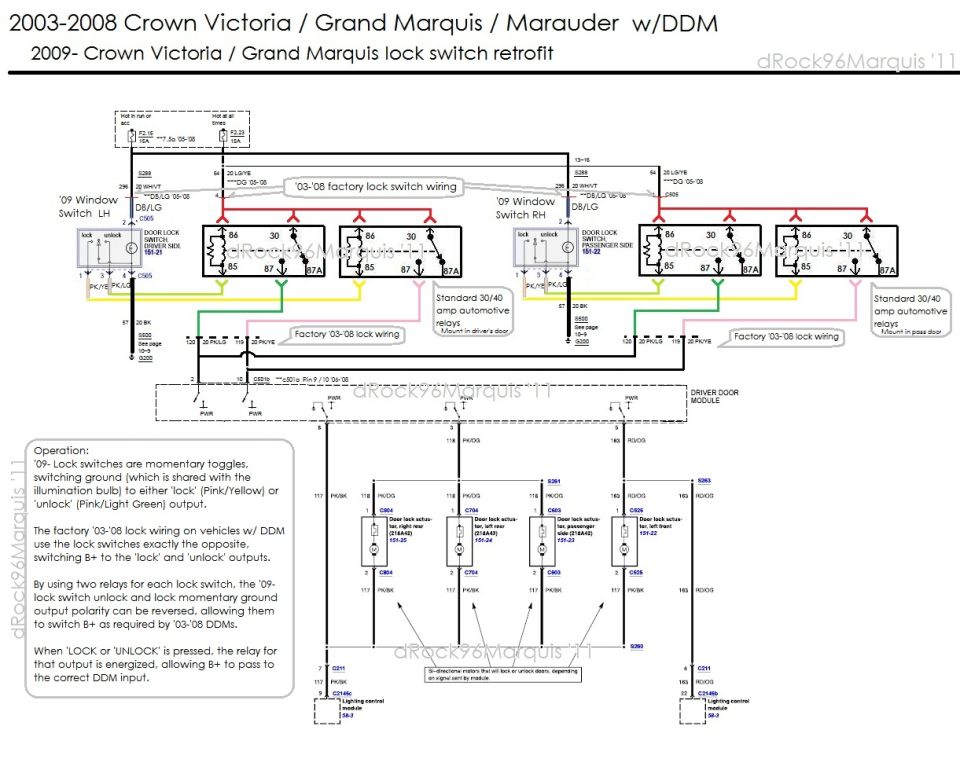

09lockswitchinto0308ddm.jpg '09- CV/GMQ lock switches into '03-'08 CV/GMQ/MM with DDMs Same as this diagram; http://www.supermotors.net/registry/media/895121 But using 4 relays to avoid splicing into DDM harness/pigtail
09lockswitchinto0308ddm.jpg | Hits: 1870 | Posted on: 11/7/11 | View original size (298.5 KB)

'09- CV/GMQ lock switches into '03-'08 CV/GMQ/MM with DDMs


Same as this diagram;
http://www.supermotors.net/registry/media/895121

But using 4 relays to avoid splicing into DDM harness/pigtail
