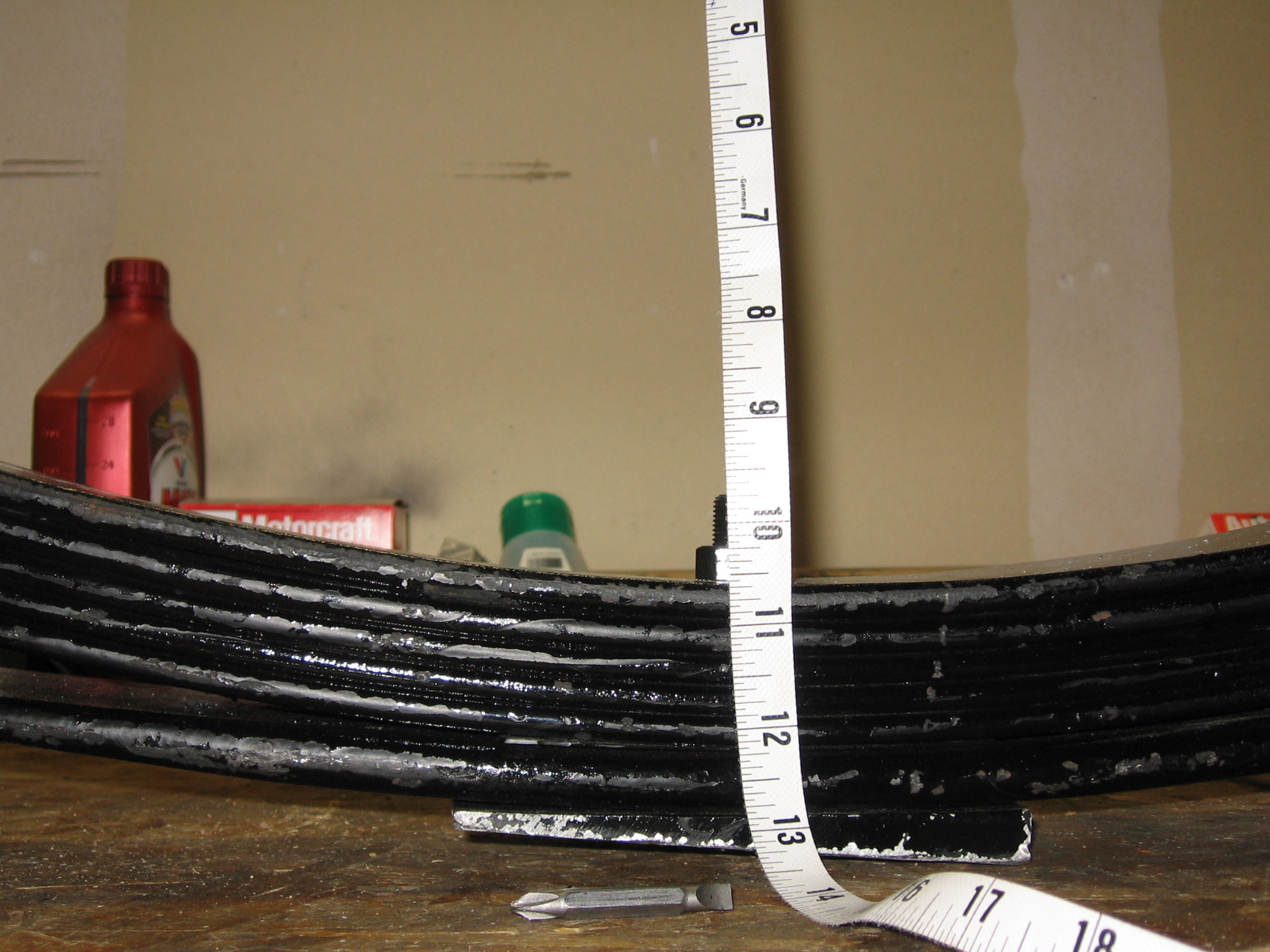

new-rear-pro-comp-23411-springs-001.jpg The next 4 pics are just the new springs and a few details sitting unloaded. I intend to use a zero rate 1" lift so these appear to be a bit too much lift. Plan that should take care of this is to remove the overload. This leaves 5 leaves, all arched nicely together, beginning 2 have teflon inserts. I've been running the stock leaf pack with 2 add a leafs to force 3" of lift, plus zero rate, and block. Block goes away with this, and ride should be much nicer. measuring leaf thickness the 5 leaves I'd use are about 5% thicker than stock bronco. So I think this will work out nice.
new-rear-pro-comp-23411-springs-001.jpg | Hits: 1329 | Posted on: 1/4/12 | View original size (444.66 KB)

The next 4 pics are just the new springs and a few details sitting unloaded. I intend to use a zero rate 1" lift so these appear to be a bit too much lift. Plan that should take care of this is to remove the overload. This leaves 5 leaves, all arched nicely together, beginning 2 have teflon inserts. I've been running the stock leaf pack with 2 add a leafs to force 3" of lift, plus zero rate, and block. Block goes away with this, and ride should be much nicer. measuring leaf thickness the 5 leaves I'd use are about 5% thicker than stock bronco. So I think this will work out nice.
