ctsycrctmod5.jpg | Hits: 1153 | Posted on: 1/24/12 | View Low-Res

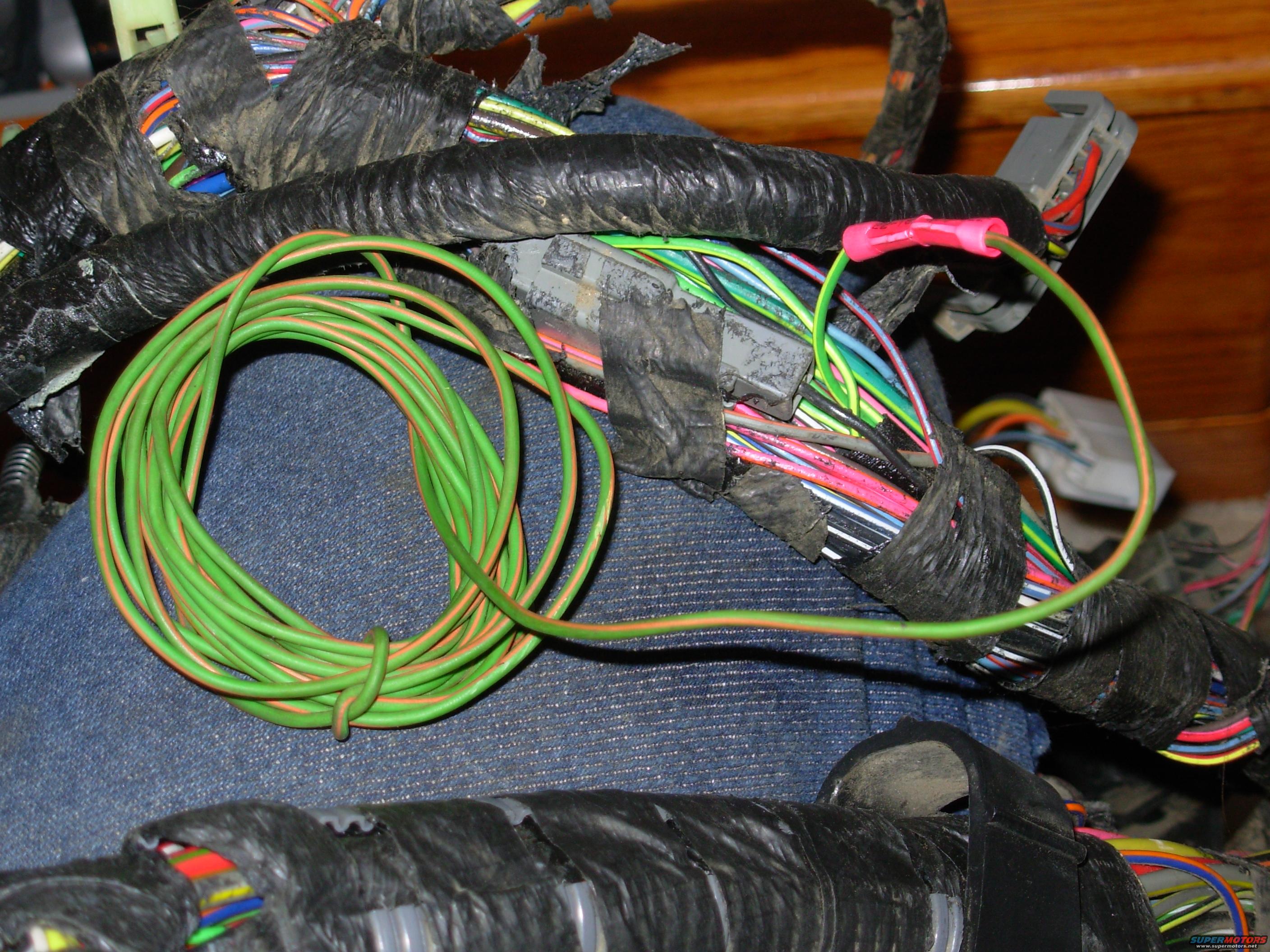

I'm adding a light in the floor console, so I spliced it onto the pigtail from the main LG/Y splice. This LG/Or wire was the closest color I could find, but it's correctly noted on my as-built diagram, as is the LG/Bk wire I used for the new A-pillar feed.

This shows another little mod:
