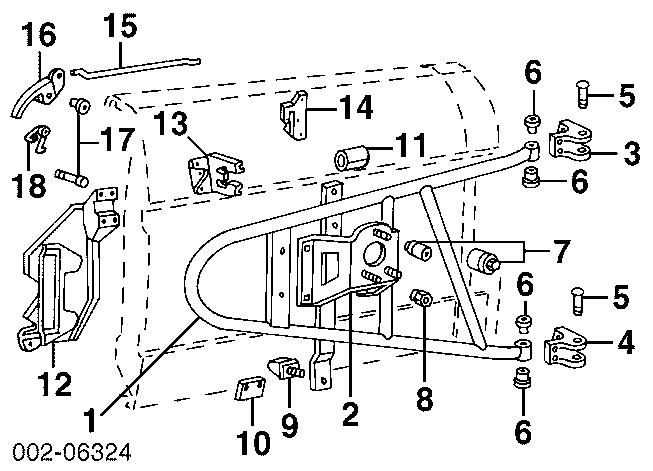

Tire Carrier, Swing-Away, Type 3 (90-96) Parts Break-Out Diagram w/Ford Part Numbers

Carrier, Tire [1] F2TZ 1433 A 32851
Support, [2] FOTZ 1A429 A 4674
Hinge, Upper [3] E7TZ 1478 A
Hinge, Lower [4] E7TZ 1479 A 6023
Hinge Pin (2) [5] D8TZ 1487 A 1406 (2)
Carrier Bushing [6] N803515-S
Lock, Wheel [7] FOTZ 1A043 B 2502
Nut, Retaining [8] E8AZ 1012 A 64
Bumper, Carrier [9] D8TZ 1A366 B 1133
Pad, Scuff [10] F1TZ 9847104 A 950
Sleeve, Carrier Arm [11] E8TZ 1A477 A 1381
Reinforcement[12] F1TZ 1A401 A 5194
Support [13] F2TZ 1469 A 1947
Latch [14] F2TZ 1A398 A 2487
Rod, Lock [15] FOTZ 1A459 A 857
Handle, Lock [16] F2TZ 1A360 A 2741
Bushing & Bolt Kit [17] FOTZ1400A 1472
Spring, Lever [18] FOTZ 1A361 A 468
