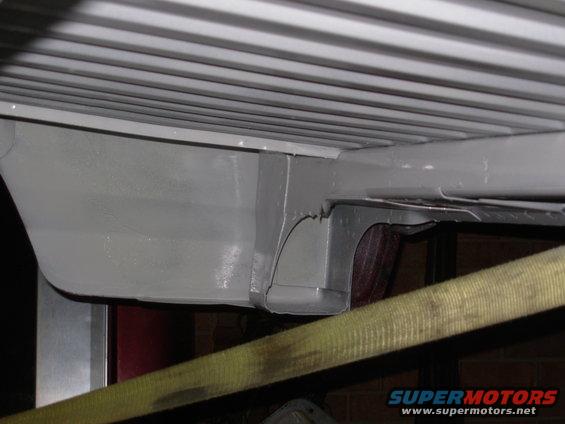

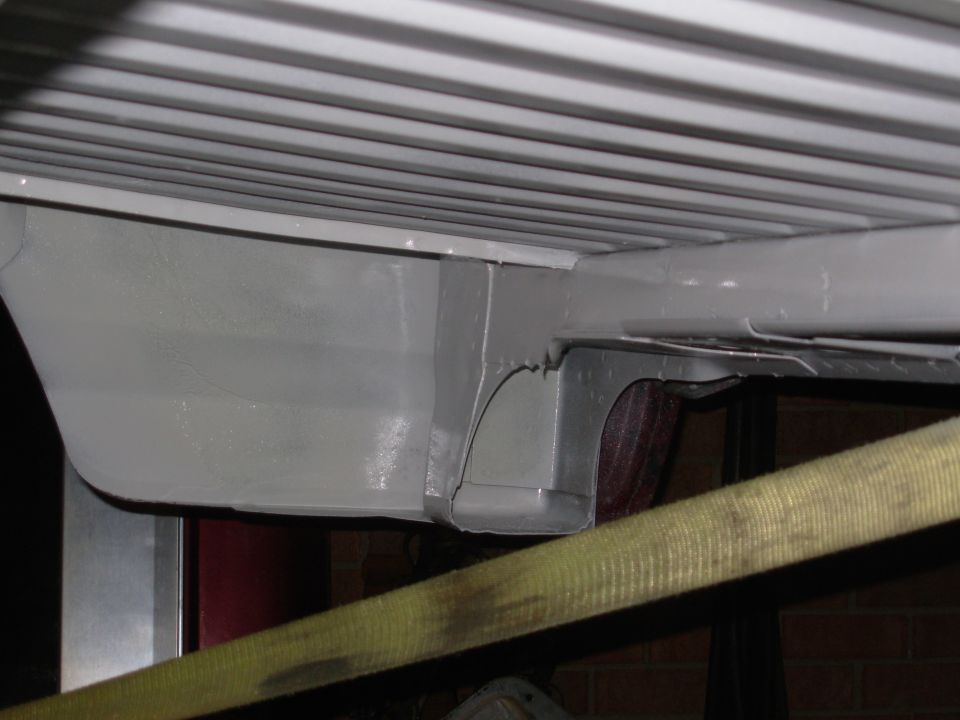

130whrhr.jpg This is why the cargo floor was sagging here - NO SUBSTRUCTURE above the gas tank.  Just the corrugations in the floor and the pinch weld along each side.  There's another structural Z-bar that stops at the fuel filler, even on the R side (where there is no filler hose).
130whrhr.jpg | Hits: 1263 | Posted on: 5/14/12 | View original size (2.37 MB)

This is why the cargo floor was sagging here - NO SUBSTRUCTURE above the gas tank. Just the corrugations in the floor and the pinch weld along each side. There's another structural Z-bar that stops at the fuel filler, even on the R side (where there is no filler hose).
