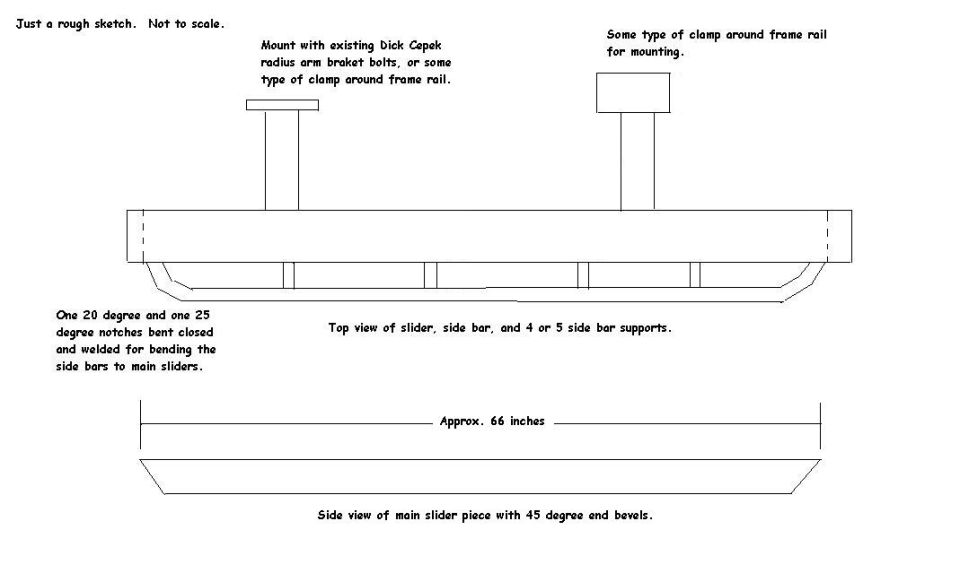

sliders-sketch.jpg Rough Sketch. Main Slider: 1-1/2" x 4" x 1/8" Mounting Arms, Outer Rail and Spacers: 1-1/2" x 1-1/2" x 1/8" Mounting Plates: 3/16" Plate
sliders-sketch.jpg | Hits: 1825 | Posted on: 11/11/03 | View original size (50.06 KB)

Rough Sketch.

Main Slider: 1-1/2" x 4" x 1/8"
Mounting Arms, Outer Rail and Spacers: 1-1/2" x 1-1/2" x 1/8"
Mounting Plates: 3/16" Plate
