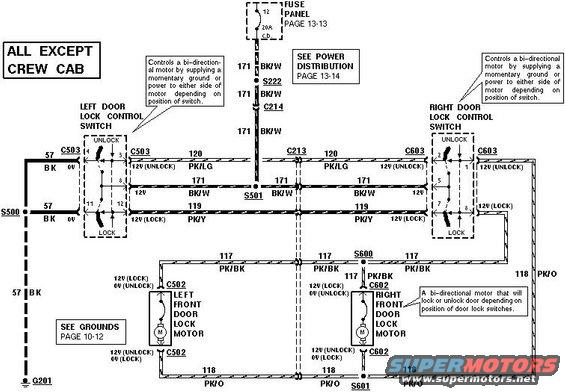

door-locks.jpg Door lock circuit from the '93 EVTM.  All '80-96 (& '97 >8500GVWR) 2-door trucks WITHOUT factory RKE ('94-97 only) are similar.

Note that the lock motors are wired in simple parallel.  4-door trucks simply have 2 more lock motors in parallel, but several more connectors.
door-locks.jpg | Hits: 6783 | Posted on: 11/23/03 | View original size (83.75 KB)

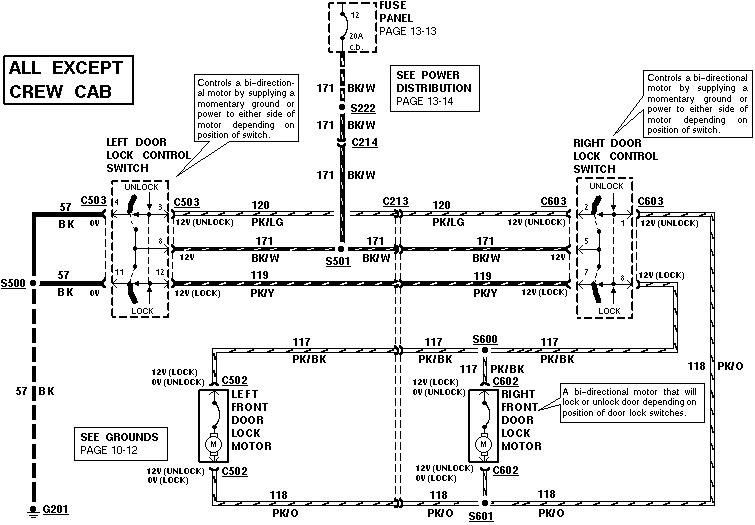

Door lock circuit from the '93 EVTM. All '80-96 (& '97 >8500GVWR) 2-door trucks WITHOUT factory RKE ('94-97 only) are similar.

Note that the lock motors are wired in simple parallel. 4-door trucks simply have 2 more lock motors in parallel, but several more connectors.
